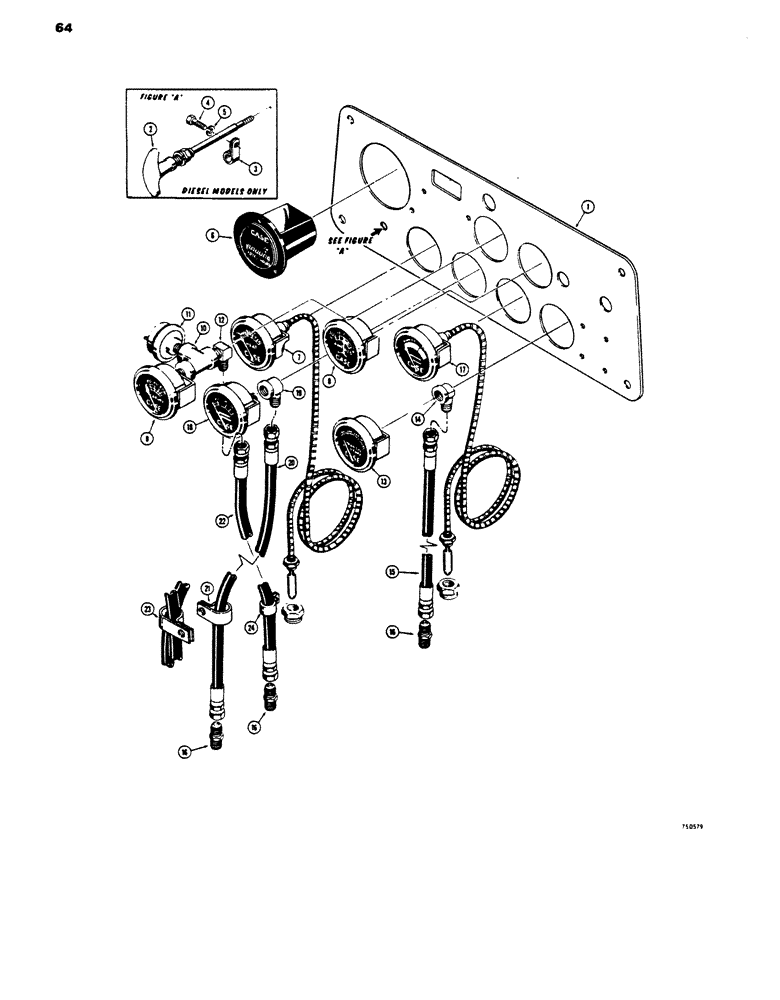

Запчасти Case 450 (064) - INSTRUMENTS AND FUEL SHUT-OFF, DOZER AND DRAWBAR MODELS (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument

1шт.

2

R30305

CABLE

CONTROL - engine shut-off

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- engine shut-off

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

REF

INSTRUCTION

HOURMETER - see Figure 62

1шт.

7

D22768

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

8

R18748

AMMETER

GAUGE - ammeter

1шт.

9

D22853

GAUGE

- engine oil pressure

1шт.

10

217-10

TEE,1/8" - 27 NPTF Fem

FITTING - tee, 1/8" NPT

1шт.

11

REF

INSTRUCTION

SWITCH - pressure, parts list Figure 62

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 deg.

1шт.

13

D29570

GAUGE

- transmission oil pressure

1шт.

14

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

FITTING - female, 90 deg.

1шт.

15

D95111

HOSE

- transmission to oil pressure gauge

1шт.

16

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, straight, D95112 and D95115 hose

3шт.

17

D44500

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

18

R15953

GAUGE

- converter oil pressure

1шт.

19

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

FITTING - female, 90 deg.

1шт.

20

D95112

HOSE

- torque converter to oil pressure gauge

1шт.

21

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- D95112 hose, converter temperature line and engine temperature line

1шт.

22

D95115

HOSE

- engine to oil pressure gauge

1шт.

23

R14668

CLAMP

- hose, D95111 and D95115 hose

1шт.

24

49838

CLAMP

- hose, engine oil pressure

1шт.
