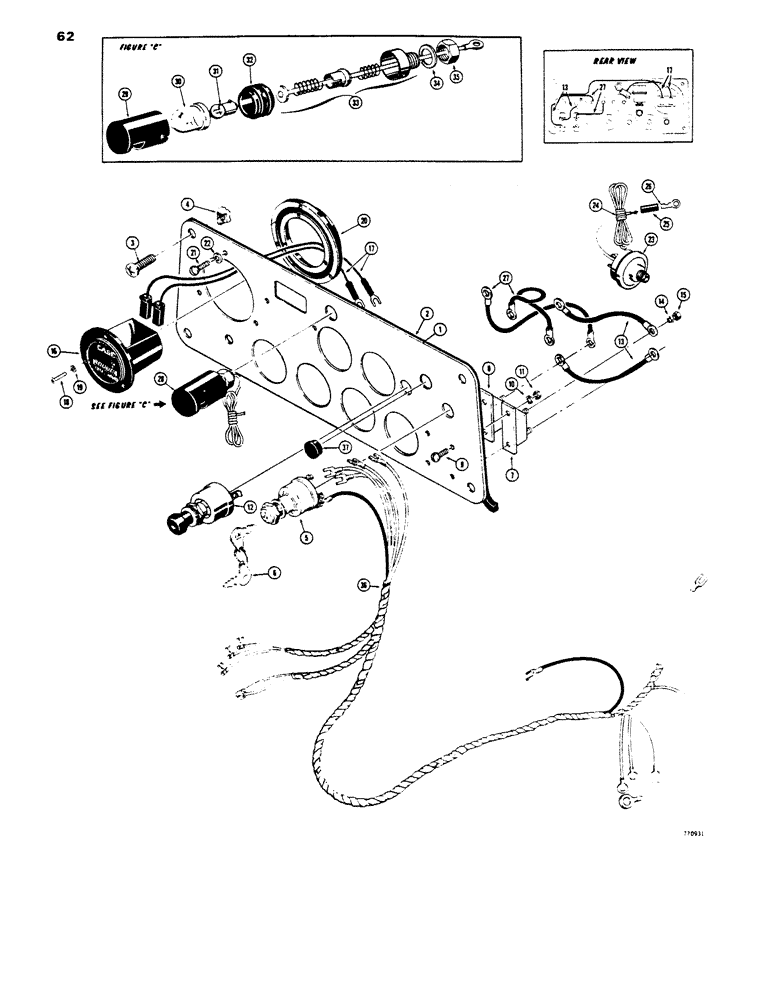

Запчасти Case 450 (062) - INSTRUMENT PANEL, WIRING AND DASH LIGHT (06) - ELECTRICAL SYSTEMS

1

D43660

PANEL

- instrument, pre-heater models

1шт.

1

R36922

PANEL

- instrument, ether injection models

1шт.

2

R26191

GASKET - panel, if used

1шт.

3

174-212

SCREW,Sl Rnd Hd, 5/16" - 24 x 3/4"

RHMS - 5/16" - 24 NF x 3/4", plated

4шт.

4

131-139

SPRING NUT,Ret, 5/16"-24

4шт.

5

D35092

SWITCH

- igition, Includes: Ref. 6

1шт.

6

D36822

KEY

- switch (set of two)

1шт.

7

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp

1шт.

8

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - No. 6 - 32 NC x 1/2"

4шт.

10

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

4шт.

11

129-15

NUT,#6-32

4шт.

12

D35065

SWITCH

- light

1шт.

13

A11768

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to igition switch and light switch

2шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - lock, internal shakeproof, No. 10

4шт.

15

129-37

NUT,#10-32

4шт.

16

R24646

ELECTRICAL GAUGE

HOURMETER - engine

1шт.

17

D39285

ELECTRICAL WIRE

WIRE - lead, 36" (914 mm)

2шт.

D39284

KIT

PACKET - hardware, Includes: Ref. 18 and 19

1шт.

18

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - No. 6 - 32 NC x 1/2"

3шт.

19

19-24

BOLT,3/8" - 16 x 2 1/4", Gr 5

WASHER - lock, internal shakeproof, No. 6

3шт.

20

D35079

DAMPER

DAMPENER - vibration

1шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - No. 6 - 32 NC x 1/2"

3шт.

22

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

3шт.

23

D28798

SWITCH

- pressure assembly, Includes: Ref. 24

1шт.

24

D28797

ELECTRICAL WIRE

WIRE - pressure switch

1шт.

25

223-80

SLEEVE - wire

1шт.

26

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire

1шт.

27

G44017

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to ammeter and ammeter to ignition switch

2шт.

28

D33212

INTERIOR LIGHT

LAMP - dash, Includes: Ref. 29 - 33

1шт.

29

R22237

COVER

- dash light

1шт.

30

R22232

SIGHTGLASS

LENS - dash light

1шт.

31

71421

BULB,R5W, 12V, 5W

- lamp, No. 67

1шт.

32

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

33

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - lamp

1шт.

34

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

35

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, lock, 5/8" - 18 NC

1шт.

36

REF

INSTRUCTION

HARNESS - see Figure 68 for proper harness

1шт.

37

353-407

PLUG,Dome, .687" hole, Nylon

- button, 25/32" dia.

1шт.
