Запчасти Case 450 (060) - R29870 STARTER, 207 DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

104202A2R

REMAN-STARTER

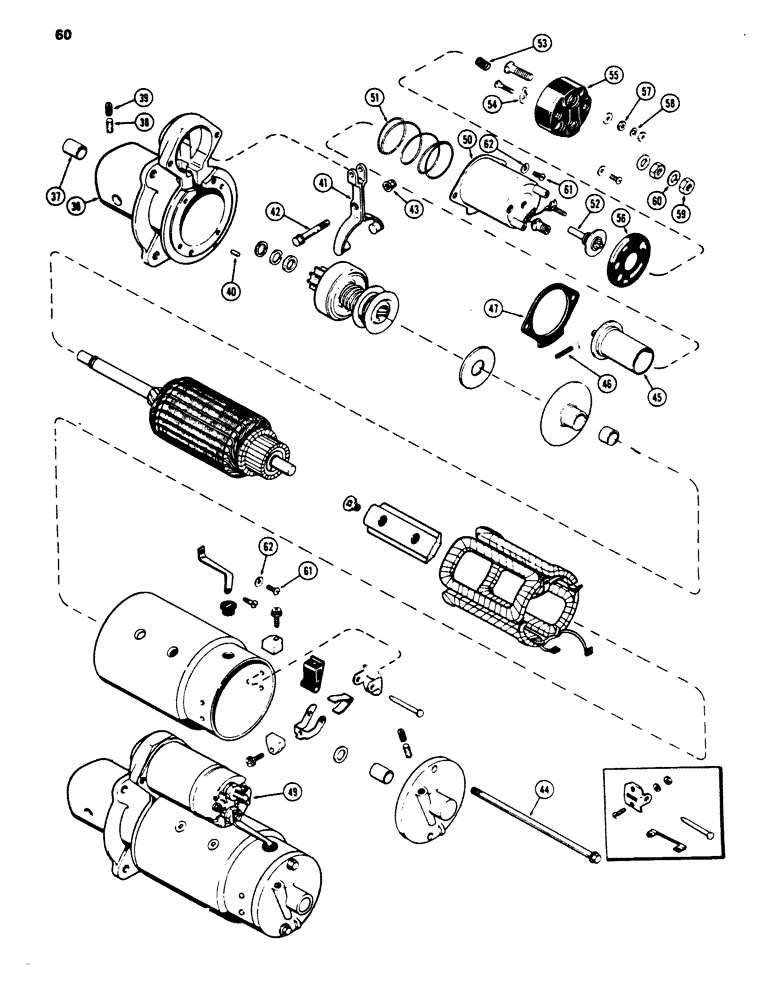

STARTER ASSY. - (replaces R29870 ), Includes: Ref. 36 - 62 and 2 - 35 on figure 58

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces. byTS

1шт.

36

A44495

LUG

HOUSING ASSY. - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive hsg. (1/2 x 5/8 x 13/16")

1шт.

38

R15023

WICK

- oiler

1шт.

39

221-1041

PLUG

- oil wick hole (1/8" P.T. sltd. hd. )

1шт.

40

R15041

PIN - locating, drive hsg. (3/16 x 5/16")

1шт.

41

A40220

LEVER

- drive shift

1шт.

42

A40520

BOLT

PIVOT - shift lever

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot (5/16" N.C. hex)

1шт.

44

A25552

BOLT

BOLT - thru

2шт.

45

A40218

PLUNGER

- solenoid

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , plunger to shift lever 3/16" x 13/16", Slotted

1шт.

47

A40222

BOOT

- plunger protection

1шт.

49

G44891

SOLENOID

ASSY. - Includes: Ref. 50 - 60

1шт.

See Delco-Remy dealer for parts illustrated but not listed.

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSY.

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSY.

1шт.

53

A42059

SPRING

- contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact & terminal

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: cover-solenoid

1шт.

57

129-16

NUT,#8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

- solenoid & connector (1/4 x 1/2" N.C. rd. hd.)

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.
