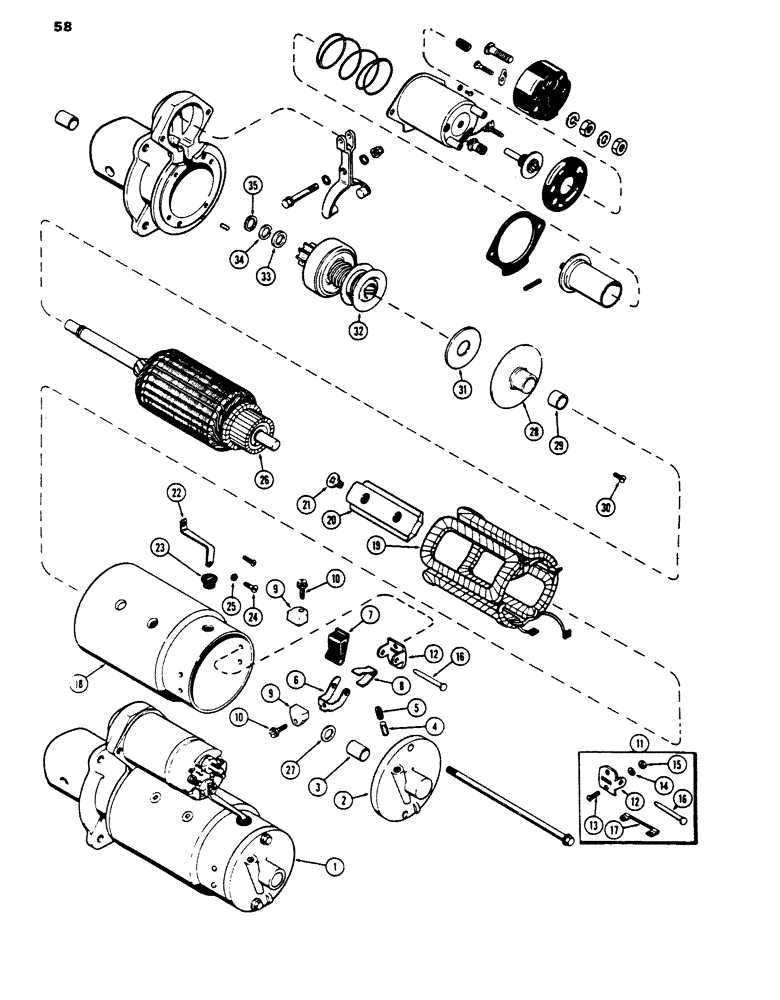

Запчасти Case 450 (058) - R29870 STARTER, 207 DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

104202A2R

REMAN-STARTER

Starter Assy. - (Delco #1109149) (replaces R29870), Includes: Ref. 2 - 35 and 36 - 62 on figure 60

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces. byTS

1шт.

2

A25304

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

A45152

BUSHING

BUSHING - (9/16 x 11/16 x 3/4")

1шт.

4

A41979

WICK

WICK - oiler

1шт.

5

221-1041

PLUG

PLUG - oil wick hole (1/8" P.T. sltd. hd.)

1шт.

6

A40217

HOLDER

HOLDER - brush (grounded)

2шт.

7

R15027

HOLDER

HOLDER - brush pressure

2шт.

8

A25359

SPRING

SPRING - brush pressure

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush ( #8-32 x 13/16 sltd. hd. w/skpf. washer)

4шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - supt. to frame (#10-24 x 1/2" rd. hd.)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

19

A25548

COIL

COIL ASSY. field

1шт.

20

A25391

SHOE

SHOE - pole

4шт.

21

74-612

SCREW,3/8" - 24 x 3/4"

SCREW - pole shoes (3/8 x 5/8" N.F. flat hd.)

8шт.

22

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

23

A41980

GROMMET

GROMMET - connector insulating (in frame)

1шт.

24

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector to coil (#10-32 x 7/16" rd. hd.)

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

26

A25547

ARMATURE

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust (at comm. end)

1шт.

28

A40215

PLATE ASSY.

PLATE ASSY - center bearing, Includes: Ref. 29

1шт.

29

R15038

BUSHING

BUSHING - center brg. (3/4 x 13/16 x 3/4")

4шт.

30

A41959

SCREW,#10 - 32 x 3/8"

SCREW - center brg. to drive hsg.

1шт.

32

A45565

DRIVE

ASSY.

1шт.

32

87421540

REMAN-STARTER DRIVE

450 CASE CRAWLER TRACTOR (S/N 3060306 & AFTER)

1шт.

32

87421541

CORE-STARTER DRIVE

Return Part umber

1шт.

33

R15049

COLLAR

COLLAR - drive stop

1шт.

34

R15048

RING

RING - snap, stop collar retaining

1шт.

35

A25385

WASHER

WASHER - thrust (drive end)

1шт.
