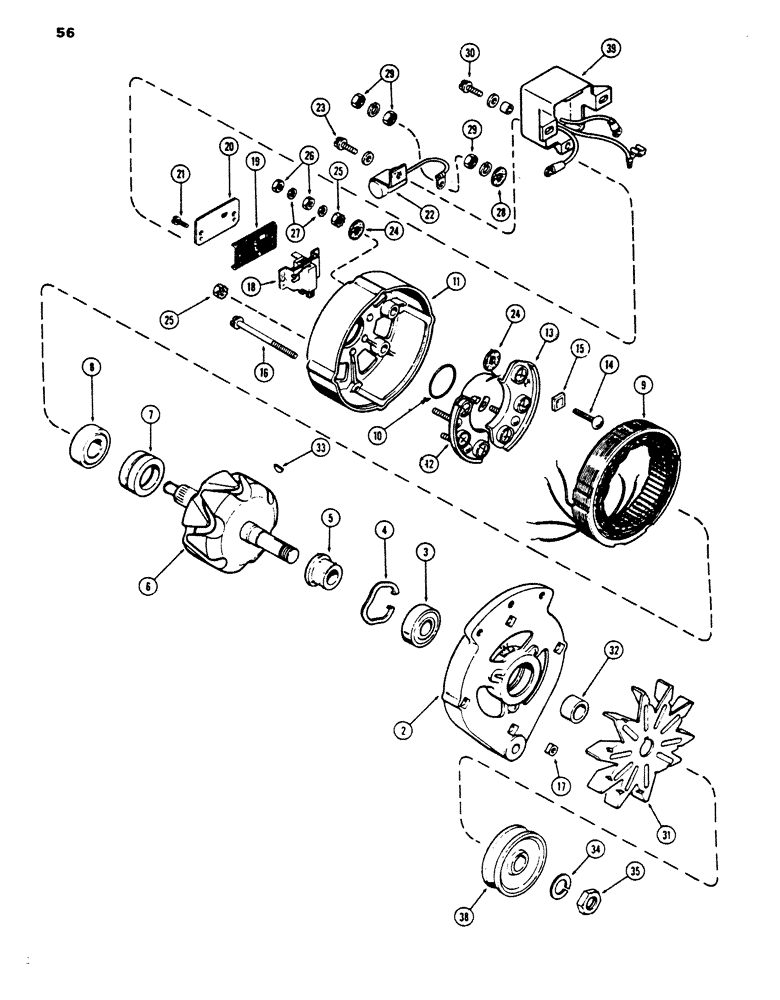

Запчасти Case 450 (056) - R30818 ALTERNATOR, 207 DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

R30818

ALTERNATOR

ALTERNATOR ASSY., Includes: Ref. 2 - 39

1шт.

104398A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

104398A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A43397

HOUSING

HOUSING - front

1шт.

3

A43404

BALL BEARING,0.562" ID x 1.5748" OD x 17"

BEARING - front (5/8 x 1-5/8 x 1/2")

1шт.

4

A43394

RETAINER

RETAINER - front bearing

1шт.

5

A41052

SLEEVE

SLEEVE - bearing

1шт.

6

A44425

IMPELLER

ROTOR

1шт.

7

A44587

KIT

RING - slip

1шт.

8

A43403

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rear (3/8 x 1-3/16 x 3/8")

1шт.

9

A44764

STATOR

STATOR

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

RETAINER - rear bearing (1-1/8 x 1-3/8 x 1/8")

1шт.

11

A44765

SPARE PART HOUSING - rear

1шт.

12

A44767

DIODE

DIODE ASSY. - negative (w/2 plate studs)

1шт.

13

A44768

DIODE

DIODE ASSY. - positive (w/1 plate stud)

1шт.

14

A41436

SCREW

STUD - positive plate (#10-24 x 1-1/2" Carr. Hd.)

1шт.

15

A41041

INSULATOR

INSULATOR - positive plate stud

1шт.

16

A44423

BOLT

STUD - thru (#10-32 x 2-7/8" spec. hd.)

4шт.

17

129-77

NUT,Sq, #10-32

NUT - thru bolt (#10-32 sq.)

4шт.

18

A43401

BRUSH ASSY.

BRUSH & HOLDER ASSY.

1шт.

19

A44769

GUARD

SHIELD - dirt

1шт.

20

A43399

COVER

COVER - brush holder

1шт.

21

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - cover (#4-40 x 3/16" slt. hd. brass)

2шт.

22

A44770

TANK

CAPACITOR - (condenser)

1шт.

23

A44787

SPARE PART SCREW - capacitor (#10-32 x 3/8" hex sltd. hd.)

1шт.

24

A44763

WASHER

WASHER - insulating (3/16 x 3/4 x 1/16")

2шт.

25

A41060

LOCK NUT

NUT - lock, w/skpf. washer (#10-24 hex hd. )

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5, Diode terminals

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

A41038

WASHER

WASHER - insulating (3/16 x 3/4 x 1/16")

2шт.

29

129-17

NUT,Hex, #10 - 24

NUT - drive terminal ( hex) #10-24

3шт.

30

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - regulator mtg. (#10-24 x 5/8" sltd. hex hd.)

3шт.

31

A43409

FAN

FAN

1шт.

32

A43405

SPACER

SPACER - fan (5/8 x 7/8 7/16")

1шт.

33

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

34

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

A41035

NUT

NUT - 5/8" N.F. hex

1шт.

38

A44678

PULLEY

PULLEY - alternator

1шт.

39

A44772

REGULATOR

REGULATOR ASSY. voltage

1шт.
