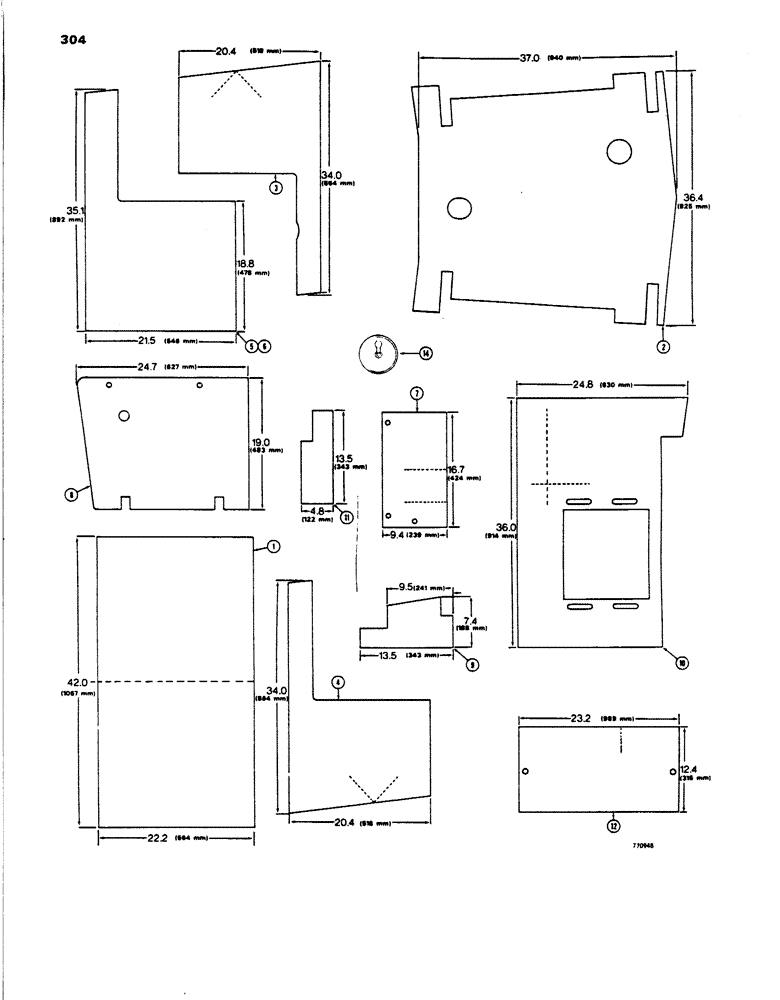

Запчасти Case 450 (304) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

1

R26143

PAD - ROPS roof

1шт.

2

REF

INSTRUCTION

PAD - hood (Cut from R30870)

1шт.

3

REF

INSTRUCTION

PAD - side screen, L.H., (Dozer and Drawbar Models) Cut from R30870

1шт.

4

REF

INSTRUCTION

PAD - side screen, R.H., (Dozer and Drawbar Models) Cut from R30870

1шт.

5

REF

INSTRUCTION

PAD - side screen, L.H., (Loader Models) Cut from R30870

1шт.

6

REF

INSTRUCTION

PAD - side screen, R.H., (Loader Models) Cut from R30870

1шт.

7

REF

INSTRUCTION

PAD - floor plate, front (Cut from R30870)

1шт.

8

REF

INSTRUCTION

PAD - cover, hydraulic tank (R.H.) Cut from R30870

1шт.

9

REF

INSTRUCTION

PAD - heel platae, R.H.(Cut from R30870)

1шт.

10

REF

INSTRUCTION

PAD - plate, under seat (Cut from R30870)

1шт.

11

REF

INSTRUCTION

PAD - heel plate, L.H. (Cut from R30870)

1шт.

12

REF

INSTRUCTION

PAD - floor plate, rear (Cut from R30870)

1шт.

13

R30870

PAD

- noise reduction, bulk (54" x 72" x 1") Not shown

1шт.

14

R37160

RETAINER

S - pad, hood - 18, and side screen - 6

1шт.
