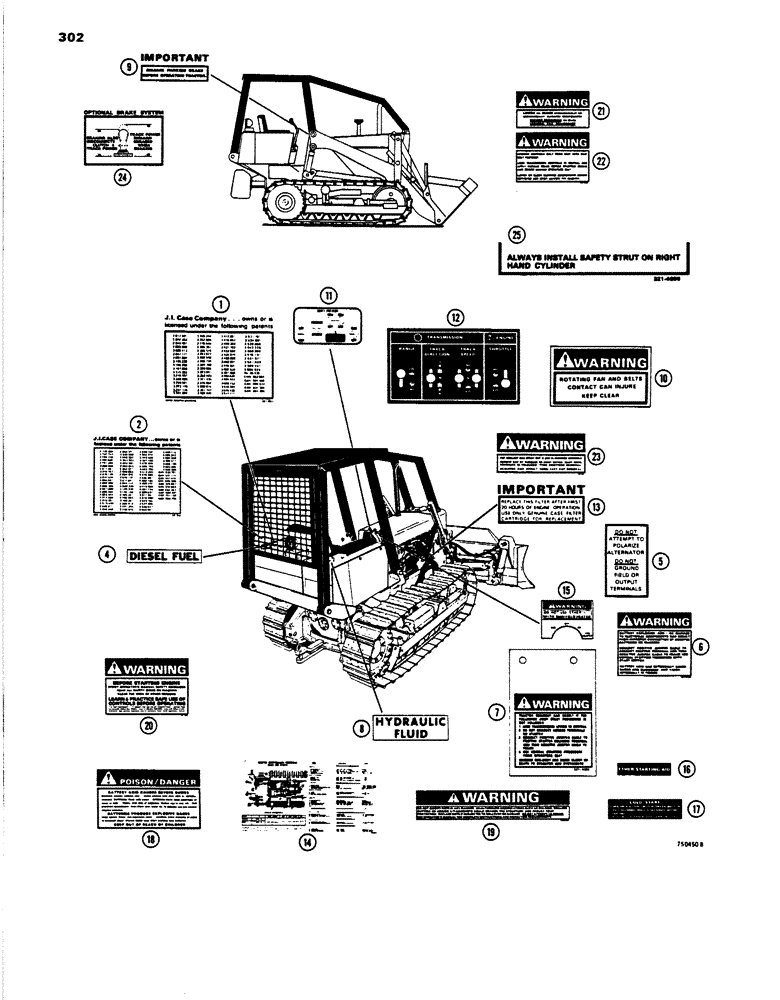

Запчасти Case 450 (302) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-663

DECAL

- equipment patent

1шт.

2

321-246

DECAL

- tractor patent, no longer used

1шт.

4

321-230

DECAL

- Diesel Fuel

1шт.

5

321-1061

DECAL

- Do Not, no longer used

1шт.

6

321-4190

DECAL

- Warning, battery

1шт.

7

321-4189

DECAL

- Warning, tractor runaway can

1шт.

8

321-229

DECAL

- Hydraulic Fluid

1шт.

9

321-2387

DECAL

- Important, parking brake, use 321-4188

1шт.

10

321-3596

DECAL

- Caution, fan

2шт.

11

321-801

DECAL

- Shift Pattern, Use 321-4176

1шт.

12

321-4653

DECAL

- Transmission Engine

1шт.

13

321-2101

DECAL

- Oil Filter

1шт.

14

321-763

DECAL

Master Maintenance Schedule (replaces 321-920)

1шт.

15

321-3040

DECAL

- Warning, do not use ether, no longer used

1шт.

16

321-2435

DECAL

- Ether Starting Aid

1шт.

17

321-1841

DECAL

- Cold Start

1шт.

18

321-2996

DECAL

- Posion/Danger

1шт.

19

321-4192

DECAL

- Warning, ROPS modification

1шт.

20

321-3705

DECAL

- Warning, before starting engine

1шт.

21

321-3042

DECAL

- Warning, lower or block, use 321-4188

1шт.

22

321-4188

DECAL

- Warning, operate from seat

1шт.

23

321-3708

DECAL

- radiator pressure

1шт.

24

321-2114

DECAL

- optional brake system

1шт.

25

321-4606

DECAL

- always install safety strut

2шт.

REF

INSTRUCTION

KIT - decal, see Figure 300

1шт.
