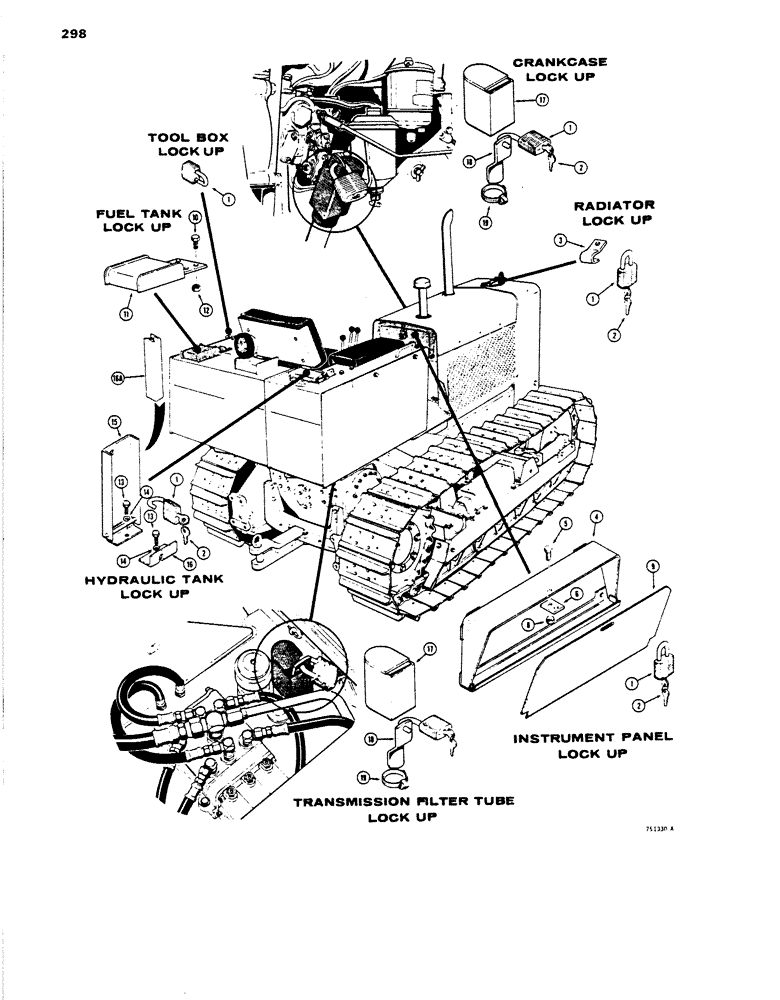

Запчасти Case 450 (298) - LOCK UP PARTS, PADLOCK AND KEYS (05) - UPPERSTRUCTURE CHASSIS

1

R29556

LOCK

PADLOCK - crawler lock up (Master no. 500)

6шт.

2

R29555

KEY

- R29554 lock, set of two

1шт.

3

D41254

CLIP

- radiator lock up

1шт.

4

D41250

GUARD

SHROUD - instrument panel lock up

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Instrument panel lock up Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

D41251

TAB - lock, instrument panel lock up

1шт.

8

131-351

LOCK NUT,5/16"-18, GA

NUT -hex self lock, 5/16" - 18 NC, instrument panel lock up

1шт.

9

D41252

GUARD

- instrument panel lock up

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fuel tank lock up Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

D41224

GUARD

- fuel cap, tank lock up

1шт.

12

131-179

LOCK NUT,3/8"-16, GA

NUT - hex self lock, 3/8" - 16 NC, fuel tank up

2шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Hydraulic tank lock up Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

hydraulic tank lock up 3/8"

2шт.

15

D41245

GUARD

- hydraulic tank lock up

1шт.

16

NLS

NO LONGER SERVICED

BRACKET - hydraulic tank lock up

1шт.

16a

R38772

RUBBER STRIP

TRIM, hydraulic tank lock up

1шт.

17

D41240

CAP

- transmission and crankcase lock up

2шт.

18

D41253

STRAP

- locking, transmission & crankcase

2шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - transmission and crankcase lock

2шт.
