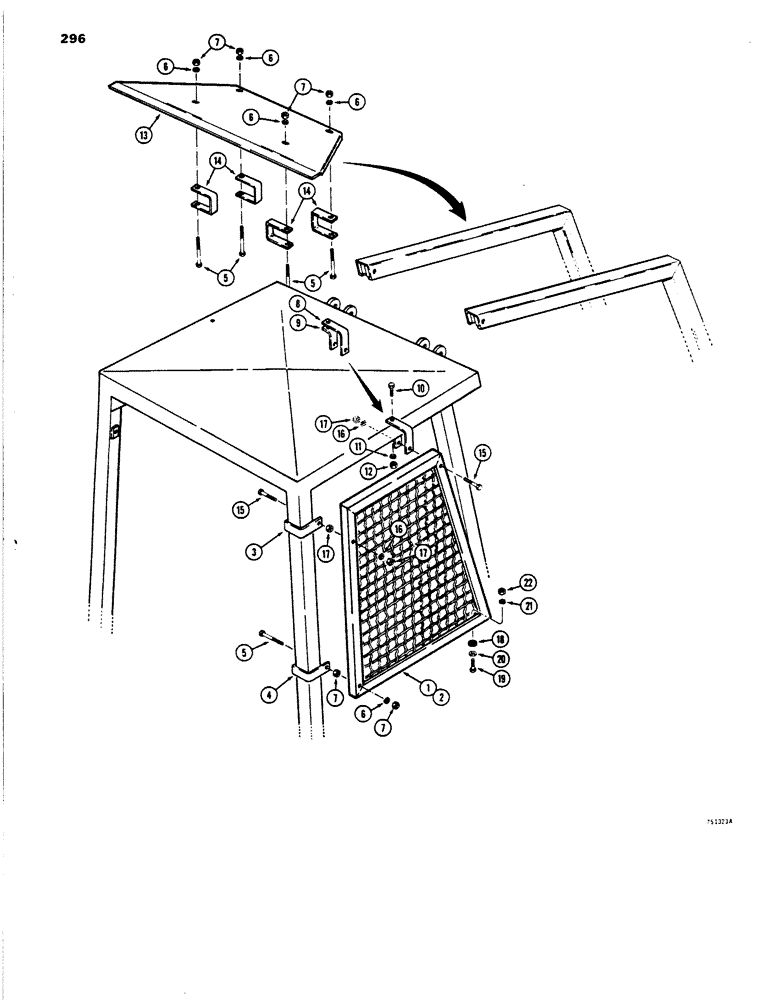

Запчасти Case 450 (296) - ROPS SIDE SCREEN AN CANOPY EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

F93827

SCREEN - side, L.H.

1шт.

2

F93828

SCREEN - side, R.H.

1шт.

3

F43787

CLAMP -upper

2шт.

4

F43788

CLAMP

- lower

2шт.

5

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

8

F43782

SUPPORT

- upper

2шт.

9

F44108

SUPPORT - lower

2шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

13

F43794

CANOPY - extension

1шт.

14

F43788

CLAMP

- canopy

4шт.

15

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

18

R37173

BUMPER

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
