Запчасти Case 450 (294) - ROLL OVER PROTECTION STRUCTURE (05) - UPPERSTRUCTURE CHASSIS

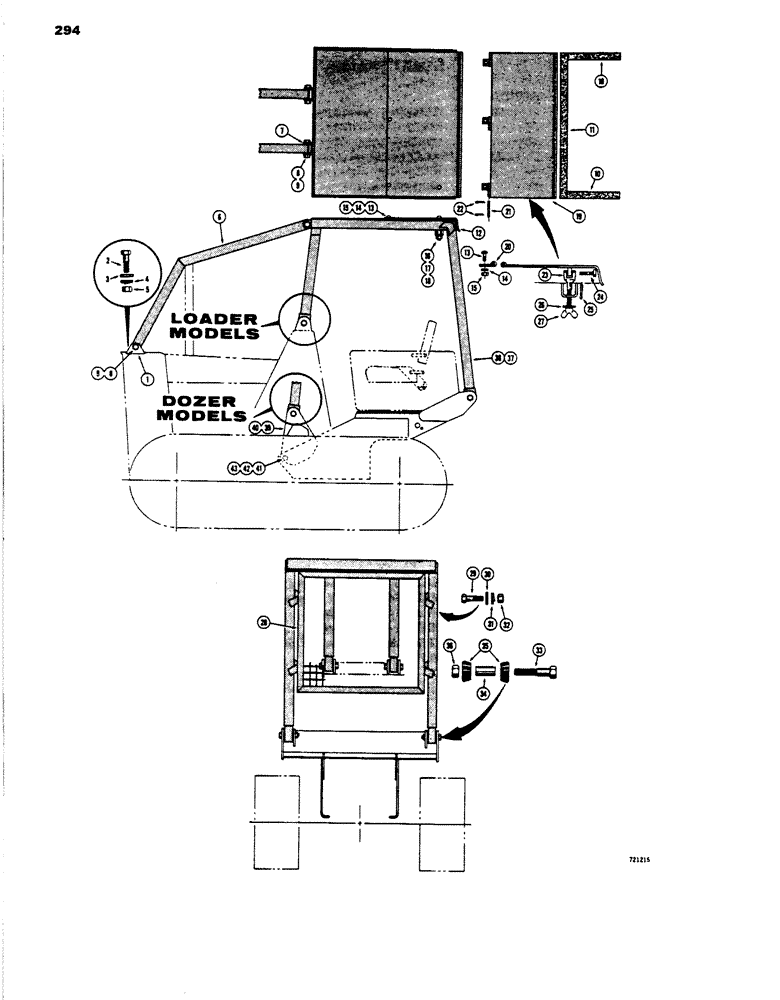

Схема запчастей Case 450 - (294) - ROLL OVER PROTECTION STRUCTURE (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

F42336

BRACKET

- guard mount

2шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

6

F93327

GUARD

- brush sweeps

2шт.

7

F42435

BRACKET - guard mounts

4шт.

8

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

HHCS - 5/8" - 18 NC x 4-1/2"

4шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

F42418

FOAM RUBBER - vibration dampener, 17-1/2" (545 mm) long, Use F42419 roll for service

2шт.

11

F42417

FOAM RUBBER - vibration dampener, 47" (1192 mm) long, Use F42419 roller for service

1шт.

12

F42428

ROOF - rear, bolted down

1шт.

13

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

3шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

16

111-525

CARRIAGE BOLT,Short NK, 1/2"-13 x 6", G2

BOLT - round head sq. shoulder, 1/2" - 13 NC x 6"

2шт.

17

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex., self lock, 1/2" - 13 NC, plated

2шт.

19

F93320

ROOF - rear, hinged

1шт.

20

F93322

HINGE

- roof

3шт.

21

F42316

EYEBOLT

PIN - hinge

3шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

23

F50092

ROD - roof retaining

2шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

26

195-10

WASHER,#8

- flat, 1/2"

2шт.

27

129-410

WING NUT,3/8"-16

NUT - winged, 1/2" - 13 NC

2шт.

28

F93321

SCREEN - rear

1шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

30

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

33

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

HHCS - 3/4" - 10 NC x 5"

4шт.

34

F42339

BUSHING

- mount

4шт.

35

F42340

INSERT

INSER - rubber (Vibration dampener)

8шт.

36

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

37

F93324

ROLL OVER PROTECTION STRUCTURE - See Figure 3 for ordering, loader models only

1шт.

38

F93323

ROLL OVER PROTECTION STRUCTURE - See Figure 3 for odering, dozer & drawbar models only

1шт.

39

F93312

BRACKET ASSEMBLY - mounting, L.H., dozer & drawbar models only

1шт.

40

F93313

BRACKET ASSEMBLY - mounting, R.H., dozer & drawbar models only

1шт.

41

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Dozer & drawbar models only Hex, 5/8"-11 x 2 1/4", G5

10шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Dozer & drawbar models only 5/8"

10шт.

43

25-1010

NUT,5/8"-11, G5

Dozer & drawbar models only 5/8"-11, G5

10шт.

Выбрано товаров: 43
