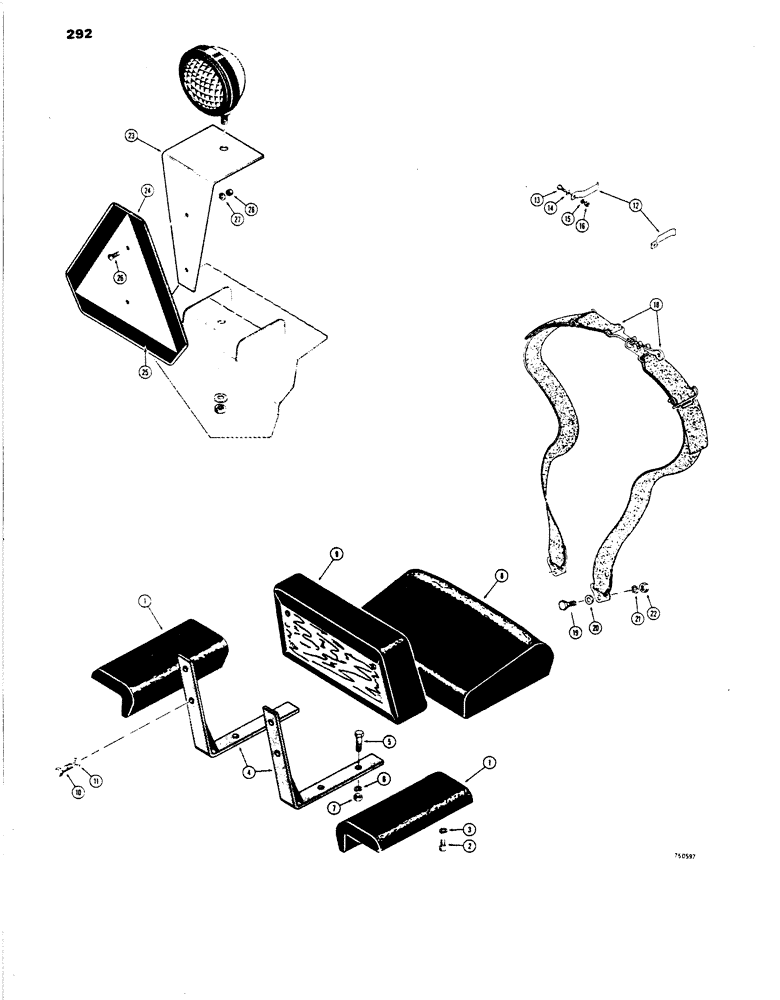

Запчасти Case 450 (292) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

R40342

ARM

CUSHION - arm and hip

2шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

D35198

MOUNTING PARTS

BRACKET - seat mounting

2шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 3/4" - 10 NC x 2-1/2"

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

131-392

NUT

- hex self lock, 1/2" - 20 NF

4шт.

8

D35226

SEAT

CUSHION -seat

1шт.

9

D44169

CUSHION

- back rest

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

R24720

HOOK

- seat belt

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

HHCS - 5/16" - 18 NC x 7/8", seat belt

2шт.

14

195-21

WASHER,5/16"

- flat, , Seat belt 5/16"

2шт.

15

92-5

LOCK WASHER,5/16"

seat belt 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, seat belt

2шт.

18

R36488

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide

1шт.

18

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

19

F42236

STEP BOLT

BOLT - special, seat belt

2шт.

20

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, seat belt

2шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belt 7/16"

2шт.

22

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, seat belt

2шт.

23

D52015

BRACKET - emblem mounting, slow moving vehicle

1шт.

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

25

321-1751

DECAL

- SMV emblem

1шт.

26

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head, No. 10 - 24 NC x 7/16", slow moving vehicle emblem

2шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

28

129-7

NUT,Hex, #10 - 24

- hex, No.10-24 NC, smv emblem

2шт.
