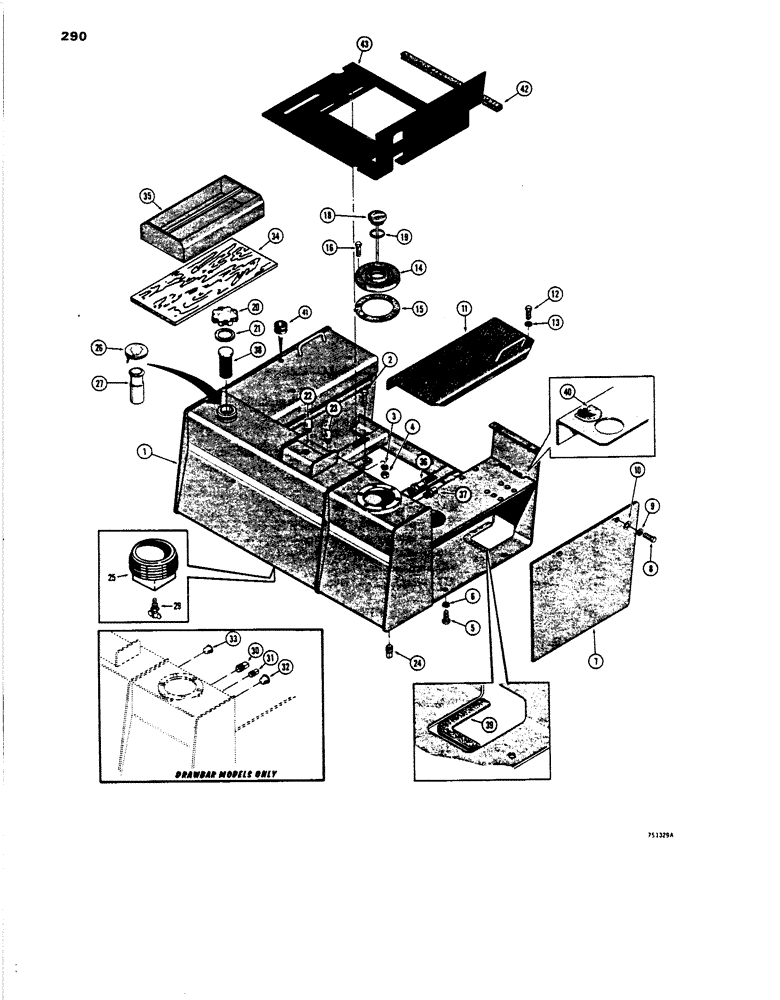

Запчасти Case 450 (290) - FUEL TANK AND HYDRAULIC RESERVOIR ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

1

D43640

TANK

AND RESERVOIR - uses refs 2 thru 23

1шт.

1

R39375

FUEL TANK

TANK AND RESERVOIR - uses refs 26 and 27

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", Ripper hose clamp - not shown

1шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

5

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

D34941

COVER - side, R.H., all models except 3 spool backhoe Model

1шт.

D37251

COVER - side, R.H., Backhoe Models with 3 spool valve

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

195-33

WASHER,1/2"

- plain

4шт.

11

D34943

COVER - top, R.H., used without return-to-dig feature

1шт.

11

R40343

COVER

- top, R.H., used with return-to-dig feature

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

13

92-8

LOCK WASHER,1/2"

3шт.

14

D34977

CAP

- hydraulic tank

1шт.

15

D50547

GASKET,1.52mm Thk

- hydraulic, tank cap

1шт.

16

D50550

BOLT

- special

6шт.

18

D34945

DIPSTICK

1шт.

19

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- dipstick

1шт.

20

D31747

COVER

CAP - D43640 tank

1шт.

21

D34975

GASKET

- D43640 tank

1шт.

22

D33027

BREATHER

AIR INLET - D43640 tank

1шт.

23

D33028

VALVE

- relief, D43640 tank

1шт.

24

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - sq. head, 1/2" NPT

2шт.

25

R27578

PLUG

- tank

1шт.

26

R39338

CUP

CAP - R39375 tank

1шт.

27

R39339

STRAINER ELEMENT

STRAINER - R39375 tank

1шт.

29

217-81

VALVE

- drain

1шт.

30

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" NPT, Drawbar Models only

1шт.

31

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" NPT, Drawbar Models only

1шт.

32

353-16

PLUG,Cap, .848" OD

CAPLUG -Drawbar Models only

1шт.

33

353-21

PLUG,Cap, 1.220" OD

CAPLUG - Drawbar Models only

1шт.

34

D35022

GUARD

SHEILD - battery

1шт.

35

R31452

BOX - tool

1шт.

36

R15538

VALVE

AIR INLET - hydraulic tank

1шт.

37

R15536

VALVE

- relief, hydraulic

1шт.

38

D36346

STRAINER ELEMENT

STRAINER - fuel

1шт.

39

D38500

LINING

TRIM - hose guard

1шт.

40

D43403

LINING

TRIM - hose guard, quick edge

1шт.

41

A23870

GROMMET

- rubber

1шт.

42

D35424

LINING

TRIM - quick edge

1шт.

43

R26140

PANEL

PLATE - under seat

1шт.
