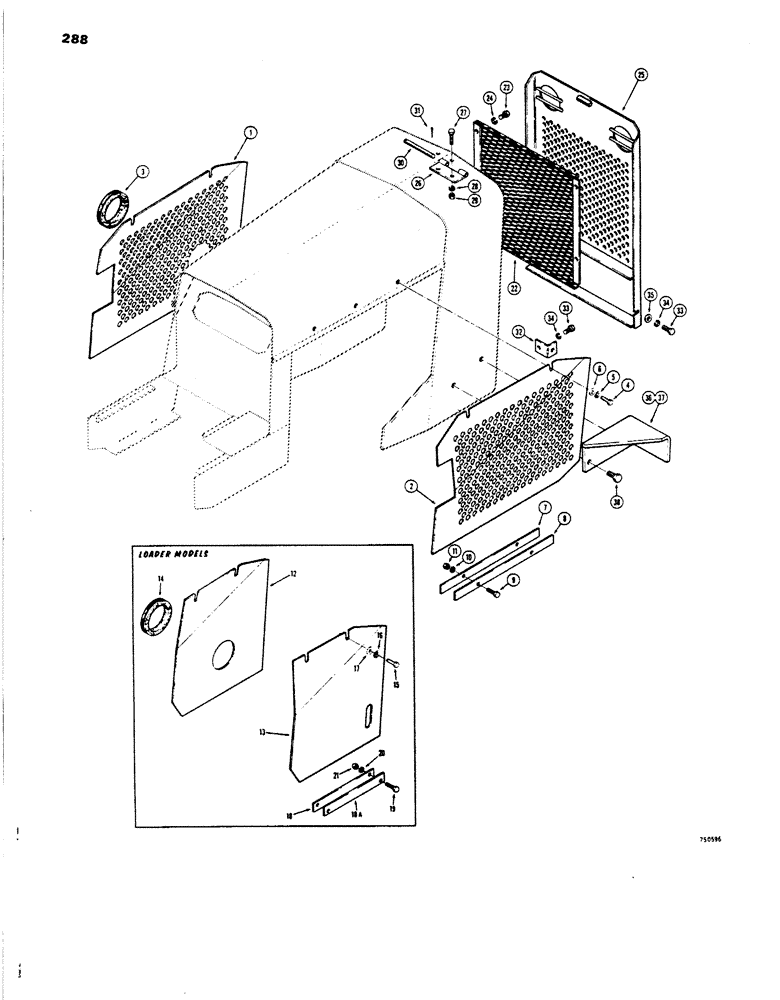

Запчасти Case 450 (288) - SIDE SHIELDS AND BRUSH GUARDS, SIDE SHIELD (USED ON DRAWBAR & DOZER MODELS ONLY) (05) - UPPERSTRUCTURE CHASSIS

1

R38001

SHIELD

AND PAD - L.H., noise reduction

1шт.

1

D35432

GUARD

SHIELD - L.H., standard

1шт.

2

D35433

GUARD

SHIELD - R.H., standard

1шт.

2

R38002

SHIELD

AND PAD - R.H., noise reduction

1шт.

3

D35424

LINING

TRIM - quick edge

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

195-53

WASHER,1" x 2" x .134"

- flat, 1/2"

4шт.

7

D38472

STRIP

- side shield retaining, inner

2шт.

8

D38471

STRIP

- side shield retaining, outer

2шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

12

R37996

SHIELD

AND PAD - L.H., noise reduction, side used on loader models only

1шт.

12

D35430

PANEL

SHIELD - L.H., standard, side used onl loader models only

1шт.

13

D35431

SHIELD

- R.H., standard, side used on loader models only

1шт.

13

R37997

SHIELD

AND PAD - R.H., noise reduction, side used on loader models only

1шт.

14

D35424

LINING

TRIM - quick edge, side shield used on loader models only

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side shield used on loader models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

side shield used on loader models only 1/2"

4шт.

17

195-33

WASHER,1/2"

- flat, , side shield used on loader models ony 1/2"

4шт.

18

D38472

STRIP

- side shield retaining, inner, used on loader models only

2шт.

18a

D38471

STRIP

- side shield retaining, outer, used on loader models only

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side shield used on loader models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

side shield used on loader models only 1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, side shield used on loader models only

4шт.

22

D35328

GUARD

SCREEN - grille, brush guard

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Brush guard Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

brush guard 1/2"

4шт.

25

D35330

GUARD - grille, brush

1шт.

26

D40462

BRACKET - mounting, grille, brush guard

1шт.

27

113-273

BOLT

HHCS - 3/8" - 16 NC x 1-1/2", brush guard

2шт.

28

192-43

WASHER,3/8"

LOCK, , Brush guard 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, brush guard

2шт.

30

D40286

PIN - mounting bracket, brush guard

1шт.

31

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Brush guard 1/8" x 1"

2шт.

32

D35354

BRACKET

- grille, lower, brush guard

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Brush guard Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

brush guard 1/2"

4шт.

35

195-33

WASHER,1/2"

- flat, , brush guard 1/2"

2шт.

36

D35332

BUMPER - L.H. Drawbar Models only, brush guard

1шт.

37

D35333

BUMPER - R.H., Drawbar Models only, brush guard

1шт.

38

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Brush guard Hex, 3/4"-10 x 2", G5

4шт.
