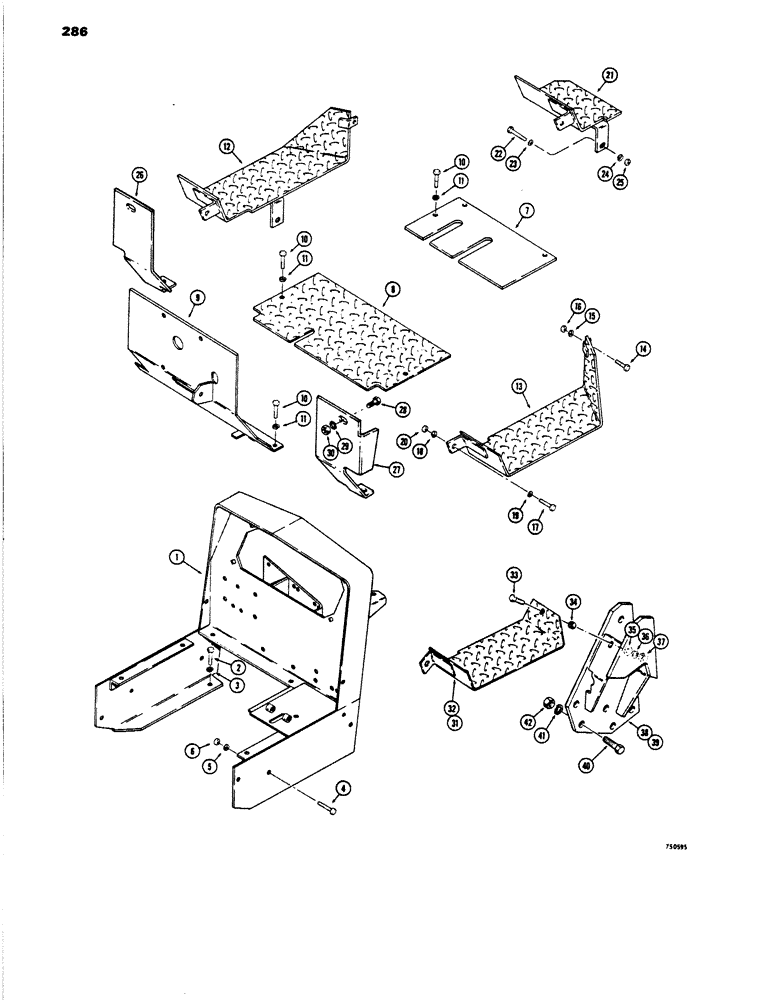

Запчасти Case 450 (286) - COWL, FLOOR PLATES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D35218

COWL - Dozer and Drawbar Models with Pre-heater

1шт.

1

R36926

COWL

- Dozer and Drawbar Models with ether injection

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

7

D45392

PLATE

- floor, front

1шт.

8

D35167

PLATE

- floor, rear

1шт.

9

D35169

PLATE - heel

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

11

92-8

LOCK WASHER,1/2"

7шт.

12

D35120

PLATE - step, L.H., Drawbar and Dozer models, without ROPS

1шт.

13

D35121

PLATE - step, R.H., Drawbar and Dozer models, without ROPS

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

21

D35116

PLATE

- step, Loader Models only

1шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

23

195-33

WASHER,1/2"

-flat, 1/2"

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

26

R26121

PLATE - heel, L.H.

1шт.

27

R26125

PLATE - heel, R.H.

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

31

F93325

PLATE

- step, L.H., Drawbar and Dozer Models, steps for rops

1шт.

32

F93326

PLATE - step, R.H., Drawbar and Dozer Models, steps for rops

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", step & models for rops

2шт.

34

F10140

SPACER - plate, steps & models for rops

2шт.

35

195-25

WASHER,3/8"

steps & models for rops

2шт.

36

92-6

LOCK WASHER,3/8"

steps & models for ROPS 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, steps & models for rops

2шт.

38

F93312

BRACKET ASSEMBLY - mounting, L.H., steps & models for rops

1шт.

39

F93313

BRACKET ASSEMBLY - mounting, R.H., steps & models for rops

1шт.

40

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Steps & models for ROPS Hex, 5/8"-11 x 2 1/4", G5

10шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Steps & models for ROPS 5/8"

10шт.

42

25-1010

NUT,5/8"-11, G5

Steps & models for ROPS 5/8"-11, G5

10шт.
