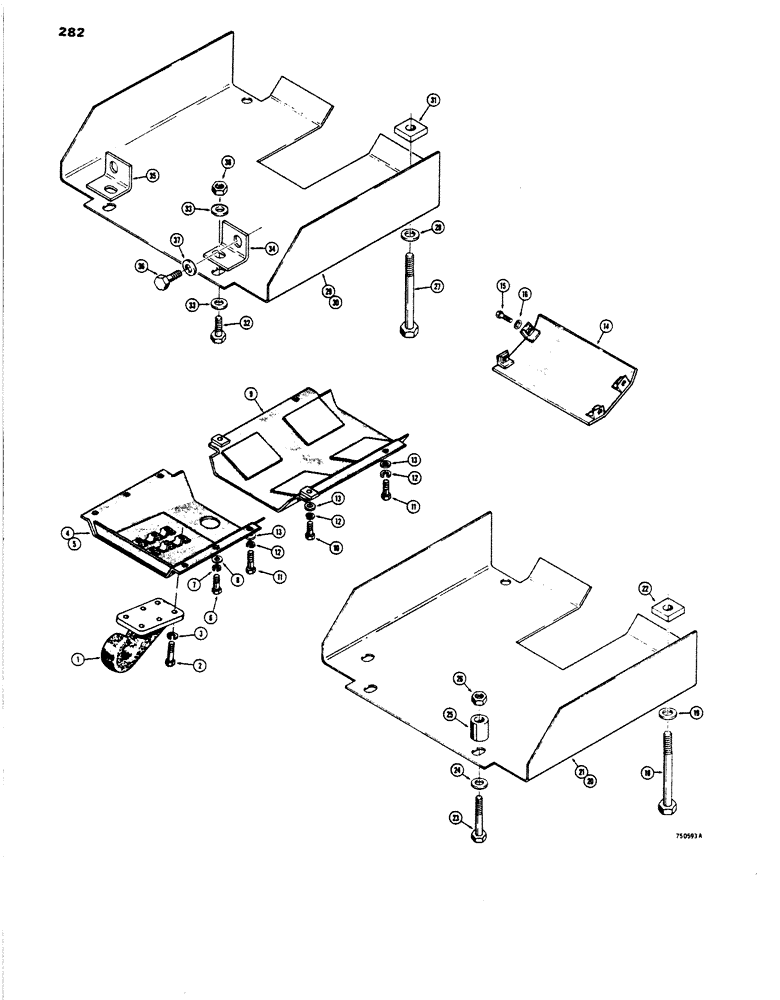

Запчасти Case 450 (282) - PULL HOOK, CRANKCASE, TORQUE CONVERTER, AND SEDIMENT BOWL GUARD (05) - UPPERSTRUCTURE CHASSIS

1

10940

HOOK

- pull, all models except Backhoe models

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

3

92-8

LOCK WASHER,1/2"

6шт.

4

D35159

GUARD

- crankcase, Drawbar and Dozer Models

1шт.

5

D35157

GUARD

- crankcase, Loader Models without backhoe

1шт.

6

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

195-41

WASHER,5/8"

4шт.

9

D35162

GUARD

- torque converter

1шт.

10

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

11

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

13

195-41

WASHER,5/8"

6шт.

14

D42811

GUARD - rear sediment bowl, Models without rear mounted equipment

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

18

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8", transmission guards for models w/o rear mounted equipment

2шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, transmission guards for models w/o rear mounted equipment

2шт.

20

D47851

GUARD

- transmission, Dozer and Drawbar models, for models w/o rear mounted equipment

1шт.

21

D47852

GUARD - transission, Loader models, for models w/o rear mounted equipment

1шт.

22

D47858

SPACER

- front, transmission guards for models w/o rear mounted equipment

2шт.

23

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Transmission guards for models w/o rear mounted equipment Hex, 3/4"-10 x 4 1/2", G5

2шт.

24

195-45

WASHER,3/4"

Transmission guards for models w/o rear mounted equipment 3/4"

2шт.

25

R36356

SPACER

- transmission guards for models w/o rear mounted equipment

2шт.

26

125-1012

NUT - hex, 3/4" - 10 NC, transmission guards for models w/o rear mounted equipment

2шт.

27

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8", for models w/ winch or ripper

2шт.

28

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, for models w/ winch or ripper

2шт.

29

D47851

GUARD

- transmission, Dozer and Drawbar models, for w/ winch or ripper

1шт.

30

D47852

GUARD - transmission, Loader models, w/ winch or ripper

1шт.

31

D47858

SPACER

- guard, for models w/ winch or ripper

2шт.

32

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

For models w/ winch or ripper Hex, 3/4"-10 x 1 3/4", G5

2шт.

33

195-45

WASHER,3/4"

For models w/ winch or ripper 3/4"

4шт.

34

D47853

BRACKET - guard, R.H., Ripper only, winch

1шт.

34

R35997

BRACKET - guard, R.H., Winch only, ripper

1шт.

35

D47854

BRACKET - guard, L.H., Ripper only, winch

1шт.

35

R35998

BRACKET - guard, L.H., Winch only, ripper

1шт.

36

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Ripper only, winch Hex, 3/4"-10 x 1 3/4", G5

2шт.

36

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 1-3/4", Winch only, ripper

2шт.

37

195-45

WASHER,3/4"

For models w/ winch or ripper 3/4"

2шт.

38

25-102

WASHER

NUT - hex, 3/4" - 10 NC, for models w/ winch or ripper

2шт.
