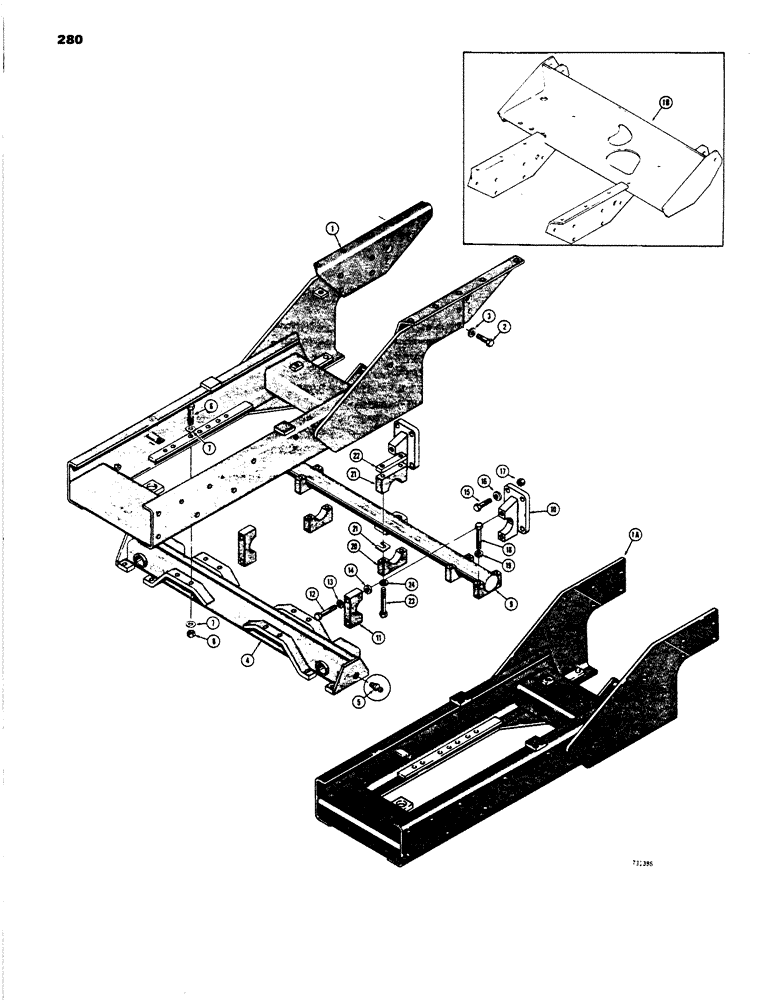

Запчасти Case 450 (280) - MAIN FRAME, CROSSBAR AND CROSSMEMBER (05) - UPPERSTRUCTURE CHASSIS

1

D35264

FRAME - engine, Used on Models with out ROPS

1шт.

1a

R30438

FUNNEL

FRAME - main, engine, Used on Models with ROPS

1шт.

1b

F93314

FRAME - main, transmission, Used on Models with ROPS

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Heat treated

8шт.

4

R27991

CROSSMEMBER - front, 50" (1270 mm) gauge

1шт.

4

R27990

CROSSMEMBER - front, 52" (1321 mm) gauge

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Heat treated

8шт.

8

25-1012

NUT,3/4"-10, G5

4шт.

9

R24583

CROSSBAR - rear, 50" (1270 mm) gauge

1шт.

9

R24581

BAR

CROSSBAR - rear, 52" ( 1321 mm) gauge

1шт.

10

D35177

CLAMP

- final, Serial Range: drive-crossbar

2шт.

11

D34663

CLAMP

- final, Serial Range: drive-crossbar

2шт.

12

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

HHCS - 7/8" - 9 NC x 4"

4шт.

13

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

14

D33982

BUSHING

SPACER - clamp

2шт.

15

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

_ Heat treated

8шт.

17

131-148

NUT

- hex, self lock, 3/4" - 10 NC

8шт.

18

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Heat treated

8шт.

20

D34663

CLAMP

- rear crossbar to engine frame

4шт.

21

D34663

CLAMP

SPACER - clamp

2шт.

22

D34722

BLOCK

- tapped

2шт.

23

13-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

HHCS - 7/8" - 9 NC x 7-1/2"

4шт.

24

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.
