Запчасти Case 450 (278) - FRONT COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

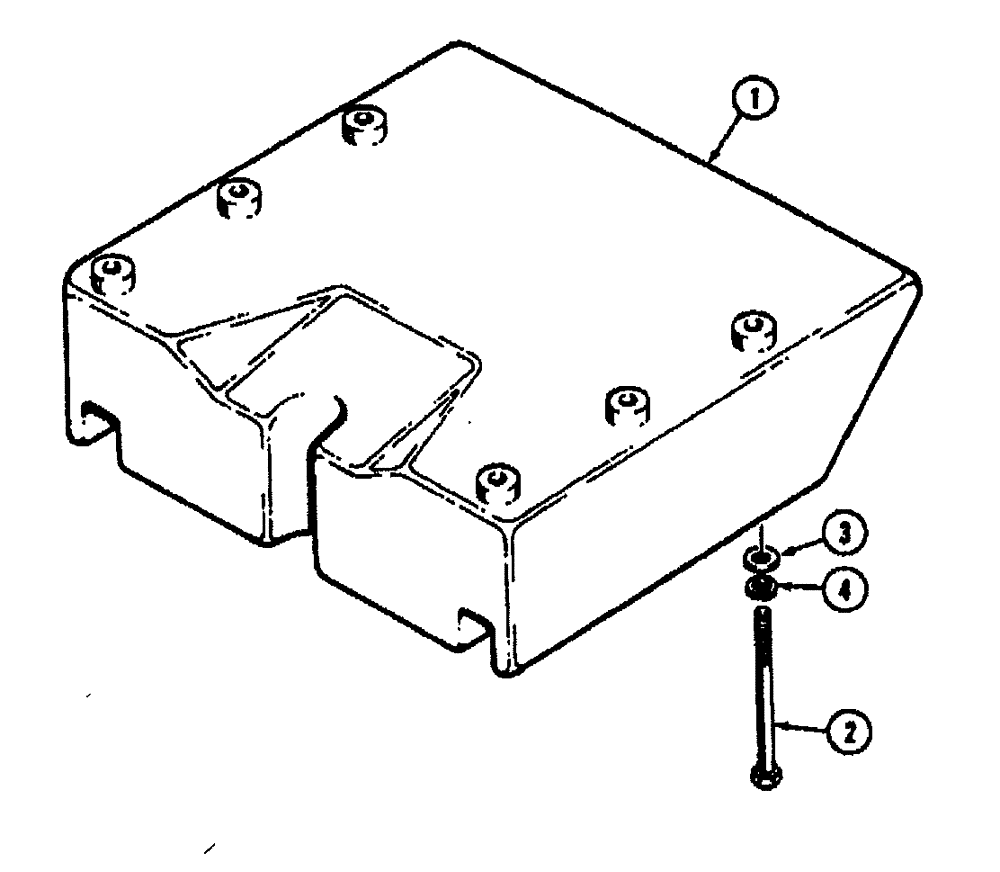

Схема запчастей Case 450 - (278) - FRONT COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS
2
1
3
4

Артикул

Название

Примечание

Количество

1

D34625

WEIGHT

COUNTERWEIGHT - 1000 lbs.,(454 kg.) Loader Models

1шт.

1

D40114

WEIGHT

COUNTERWEIGHT - 1000 lbs., (454 kg.) Loader Models

1шт.

2

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

HHCS - 5/8" - 11 NC x 7-1/2" (Loader Models)

6шт.

2

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6" (Dozer Models)

6шт.

3

195-41

WASHER,5/8"

6шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

Выбрано товаров: 6
