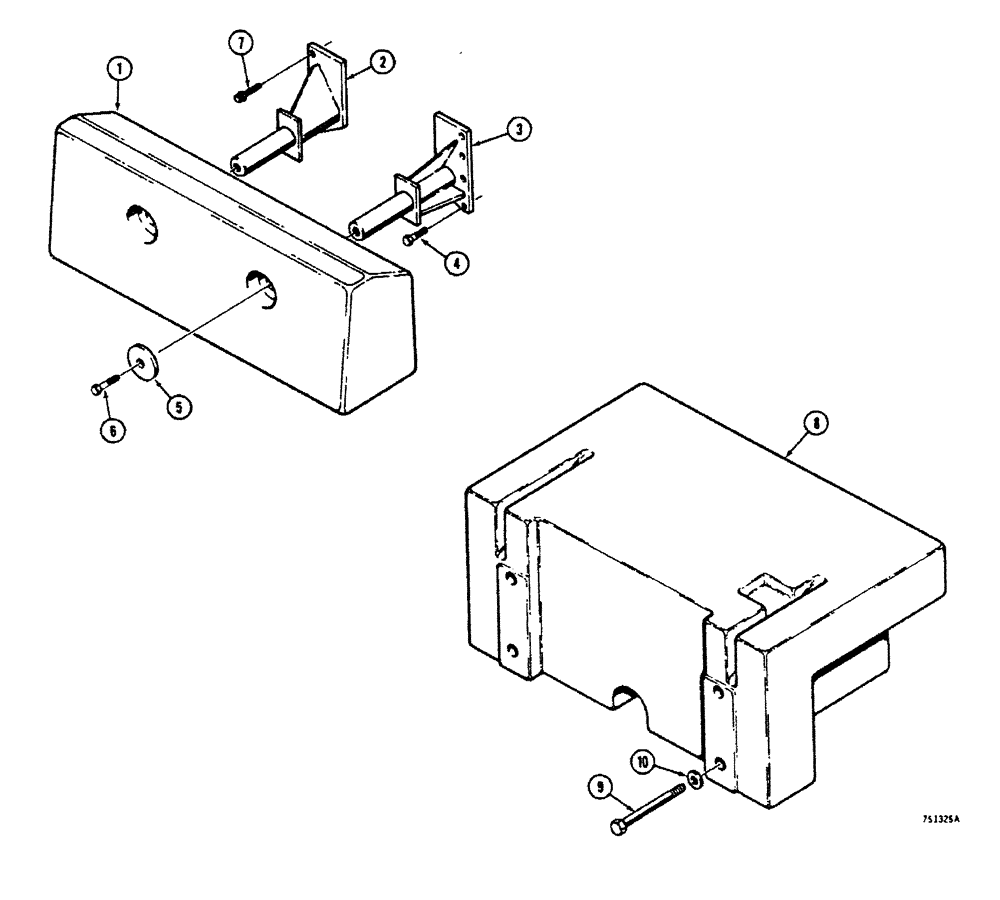

Запчасти Case 450 (278[1]) - REAR COUNTERWEIGHT WITHOUT REAR MOUNTED EQUIPMENT BEFORE TRACTOR SN. 3060333 (05) - UPPERSTRUCTURE CHASSIS

1

D34737

WEIGHT

COUNTERWEIGHT - rear, 1665 lbs. (755 kg.) Cast Iron

1шт.

1

R32712

WEIGHT

COUNTERWEIGHT - rear, 1535 lbs., (675 kg.) Fabricate, Not shown

1шт.

2

R35978

SPARE PART BRACKET - mounting, L. H.

1шт.

3

R35979

SPARE PART BRACKET - mounting, R. H.

1шт.

4

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

HHCS - 3/4" - 10 NC x 1-3/4"

4шт.

5

R17607

WASHER

WASHER - special

2шт.

6

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

D34737 counterweight

2шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

R32712 counterweight

2шт.

7

166-132

BOLT - ferry head, 3/4" - 10 NC x 1-3/4"

4шт.

8

R38788

SPARE PART COUNTERWEIGHT - rear, 1600 lb. (726 kg.), tractor sn. 3060333 and after

1шт.

9

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Tractor S/N 3060333 and after

4шт.

10

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

WASHER - special, tractor sn. 3060333 and after

4шт.
