Запчасти Case 450 (274) - DRAWBARS (MODELS WITH WINCH), MODEL 9 WINCH (05) - UPPERSTRUCTURE CHASSIS

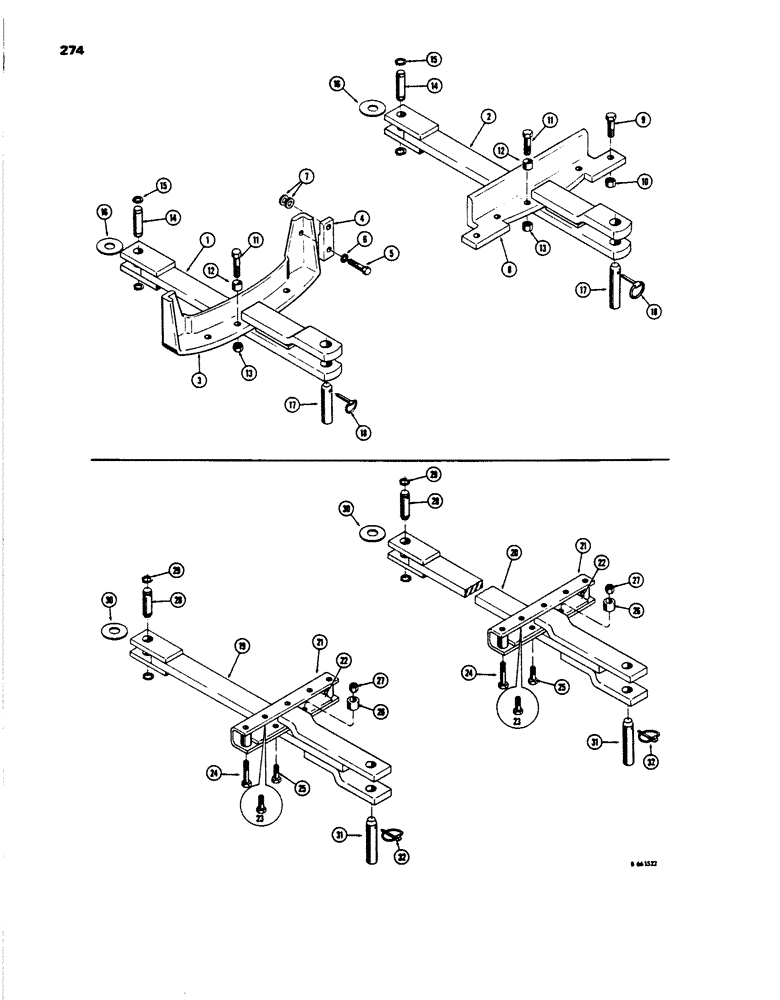

Схема запчастей Case 450 - (274) - DRAWBARS (MODELS WITH WINCH), MODEL 9 WINCH (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

R37272

BAR

DRAWBAR - Dozer Models only

1шт.

2

D44148

DRAWBAR, SWINGING

DRAWBAR - Loader Models only

2шт.

3

D38516

GUIDE - D44147 drawbar

1шт.

3

D38501

GUIDE - D44148 drawbar

1шт.

4

D38523

BAR - D44147 drawbar

1шт.

5

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

A29880

WASHER - special

1шт.

8

D38501

GUIDE - D44148 drawbar

1шт.

9

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

11

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

12

T29173

BUSHING

- stop, drawbar

2шт.

13

25-1012

NUT,3/4"-10, G5

2шт.

14

D46467

PIN

- mounting, drawbar (replaces D25993)

1шт.

15

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

16

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4"

1шт.

17

D35202

PIN

- mounting, equipment

1шт.

18

D33805

PIN

- Kilk

1шт.

19

R37296

DRAWBAR

- Loader Models only, 19" winch

1шт.

20

R37297

DRAWBAR

- Dozer Models only, 19" winch

1шт.

21

D38542

GUIDE - drawbar, model 19" winch

1шт.

22

D38540

PLATE - wear, models 19" winch

1шт.

23

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Model 19" winch Hex, 3/4"-10 x 1 1/4", G5

2шт.

24

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4", model 19" winch

2шт.

25

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 2-1/2", model 19" winch

2шт.

26

T29173

BUSHING

- stop, drawbar, model 19" winch

2шт.

27

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex lock, 3/4" - 10 NC, model 19" winch

2шт.

28

D46467

PIN

- mounting, drawbar (replaces D25993), model 19" winch

1шт.

29

D26918

SNAP RING,#125, Ext

Ring, Snap, , model 19" winch #125, Ext

2шт.

30

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4", model 19" winch

1шт.

31

D35202

PIN

- mounting, equipment, model 19" winch

1шт.

32

D33805

PIN

- Kilk, model 19" winch

1шт.

Выбрано товаров: 33
