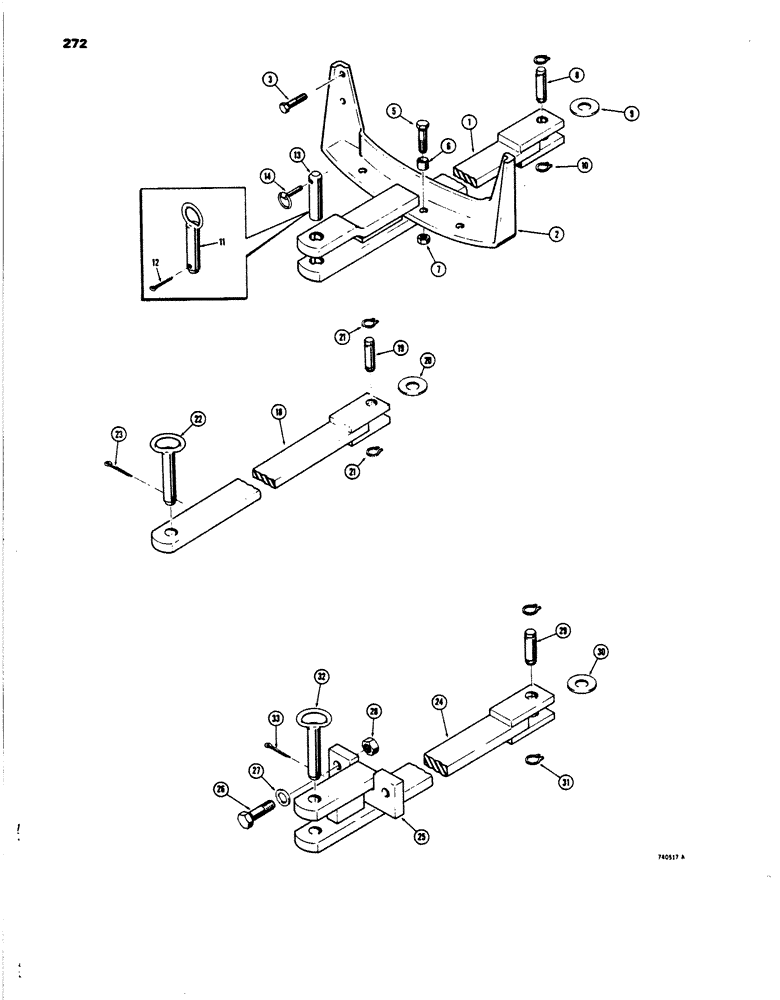

Запчасти Case 450 (272) - DRAWBARS (MODELS WITHOUT WINCH), MODELS WITHOUT REAR MOUNTED (05) - UPPERSTRUCTURE CHASSIS

1

R37272

BAR

DRAWBAR - Drawbar and Dozer Models only

1шт.

1

R37273

BAR

DRAWBAR - Loader Counterweight Models only

1шт.

2

R30272

GUIDE

- drawbar, before tractor sn. 3060333

1шт.

2

R39425

GUIDE

- drawbar tractor sn. 306033 and after

1шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

HHCS - 3/4" - 10 NC x 1-1/2"

4шт.

5

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

6

T29173

BUSHING

- stop

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

D46467

PIN

- mounting (replaces D25993)

1шт.

9

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4"

1шт.

10

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

11

R24105

DRAWBAR

PIN - R37272 drawbar

1шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

13

D35202

PIN

- R37273 drawbar

1шт.

14

D33805

PIN

- Kilk

1шт.

18

D44146

DRAWBAR

- Loader Models, used w/ ripper

1шт.

18

D44152

BAR

DRAWBAR - Dozer Models, used w/ ripper

1шт.

19

D46467

PIN

- mounting (replaces D25993), used on models w/ ripper

1шт.

20

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4", used on models w/ ripper

1шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, , used on models w/ ripper #125, Ext

2шт.

22

R24105

DRAWBAR

PIN - mounting, equipment, used on models w/ ripper

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on models w/ ripper 1/4" x 2"

1шт.

24

R37190

DRAWBAR

- Dozer Models, loader w/ backhoe

1шт.

24

R37292

DRAWBAR - Loader Models, dozer w/ backhoe

1шт.

25

D39519

BRACKET

- locking, drawbar, loader & dozer w/ backhoe

1шт.

26

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3", loader & dozer w/ backhoe

2шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, loader & dozer w/ backhoe

2шт.

28

25-1016

NUT,1"-8, G5

Loader & dozer w/ backhoe 1"-8, G5

2шт.

29

D46467

PIN

- mounting (replaces D25993), loader & dozer w/ backhoe

1шт.

30

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4", loader & dozer w/ backhoe

1шт.

31

D26918

SNAP RING,#125, Ext

Ring, Snap, , loader & dozer w/ backhoe #125, Ext

2шт.

32

R24105

DRAWBAR

PIN - mounting, equipment, loader & dozer w/ backhoe

1шт.

33

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Loader & dozer w/ backhoe 1/4" x 2"

1шт.
