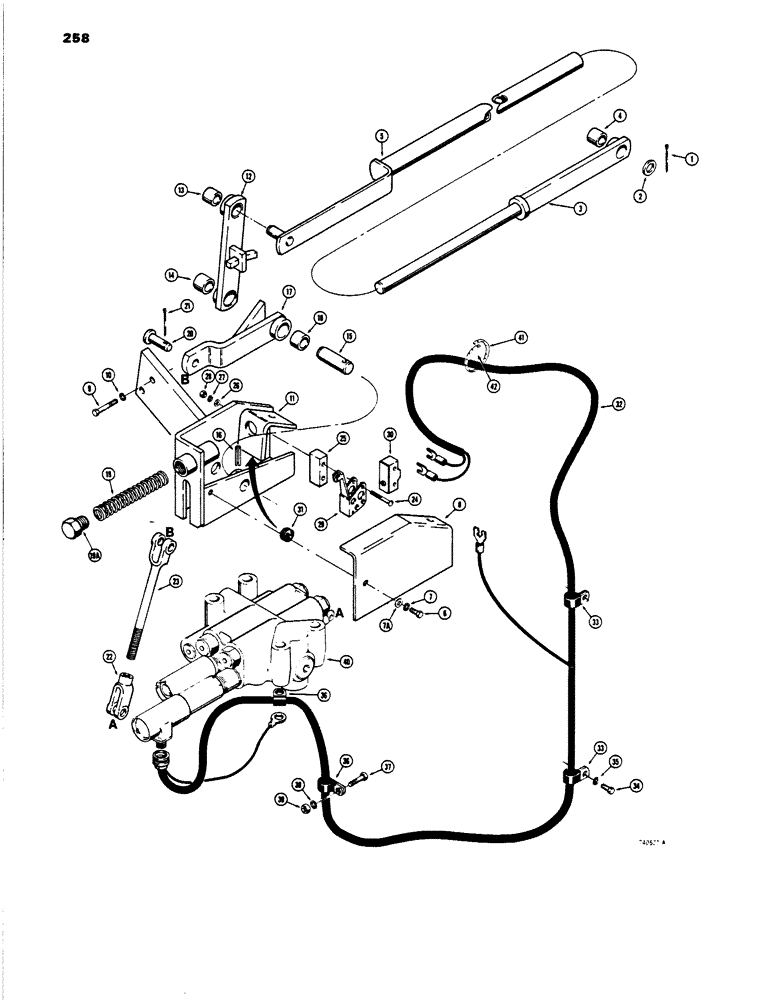

Запчасти Case 450 (258) - RETURN-TO-DIG AND ANTI-ROLLBACK (05) - UPPERSTRUCTURE CHASSIS

1

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

195-45

WASHER,3/4"

1шт.

3

R31488

ROD ASSY.

ROD - at link, inner, Includes: Ref. 4

1шт.

4

A12018

BUSHING

- rod

1шт.

5

R33253

ROD - at switch box

1шт.

6

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7a

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

8

R33258

COVER - switch

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

R33246

BOX - switch

1шт.

12

R33265

LINK

- anti-rollback, Includes: Ref. 13 and 14

1шт.

13

B15768

BUSHING

- upper end

1шт.

14

R33023

BUSHING

- lower end

1шт.

15

R33259

PIN

- link, retaining

1шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

17

R33257

LINK - to valve control, Includes: Ref. 18

1шт.

18

A12018

BUSHING

- link

1шт.

19

R33014

SPRING

- return-to-dig

1шт.

19a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

20

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable

1шт.

23

R33017

ROD - at valve controls

1шт.

24

169-71

SCREW - machine, slotted, no. 6-32 NC x 2"

2шт.

25

R33260

SPACER - switch

1шт.

26

A31205

WASHER - special

2шт.

27

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - lock, no. 6

2шт.

28

129-5

NUT,#6-32

2шт.

29

R33016

BRACKET

ACTUATOR - switch

1шт.

30

R33015

SWITCH

- micro

1шт.

31

A23870

GROMMET

- rubber

1шт.

32

R33018

HARNESS - wiring, ignition switch to micro switch and valve

1шт.

33

49859

CLAMP

- harness

5шт.

34

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness

2шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

40

REF

INSTRUCTION

VALVE - loader, See Figure 216 for proper valves

1шт.

41

D43188

STRAP

- harness

2шт.

42

D41075

STUD

- strap retaining

2шт.
