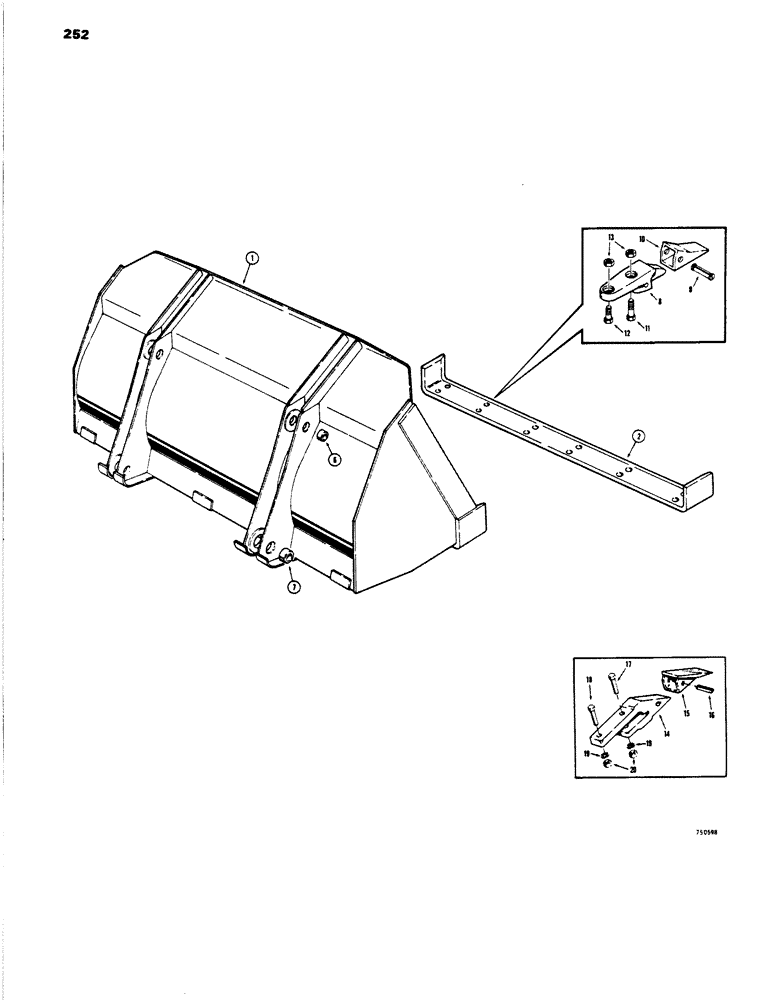

Запчасти Case 450 (252) - D49578 LOADER BUCKET (05) - UPPERSTRUCTURE CHASSIS

NSS

NOT SOLD SEPARAT

BUCKET - loader, complete (See Figure 2 for ordering), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D51886

EDGE, CUTTING

EDGE - cutting, one piece (If used)

1шт.

6

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- bucket mounting (Upper)

4шт.

7

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- bucket mounting (Lower)

4шт.

D50780

TOOTH

ASSEMBLY - complete, bucket optional, Includes: Ref. 8 - 10

6шт.

8

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth optional

1шт.

10

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket optional

1шт.

11

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/4", bucket teeth optional

6шт.

12

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" -11 NC x 2-1/2", bucket teeth optional

6шт.

13

25-1010

NUT,5/8"-11, G5

Bucket teeth optional 5/8"-11, G5

12шт.

D40449

TOOTH

ASSEMBLY - service option, bucket, Includes: Ref. 14 - 16

6шт.

14

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

15

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

16

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth optional

1шт.

17

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Bucket teeth optional Hex, 1/2"-13 x 3 1/2", G5

6шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2", bucket teeth optional

6шт.

19

92-8

LOCK WASHER,1/2"

bucket teeth optional 1/2"

12шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, bucket teeth optional

12шт.
