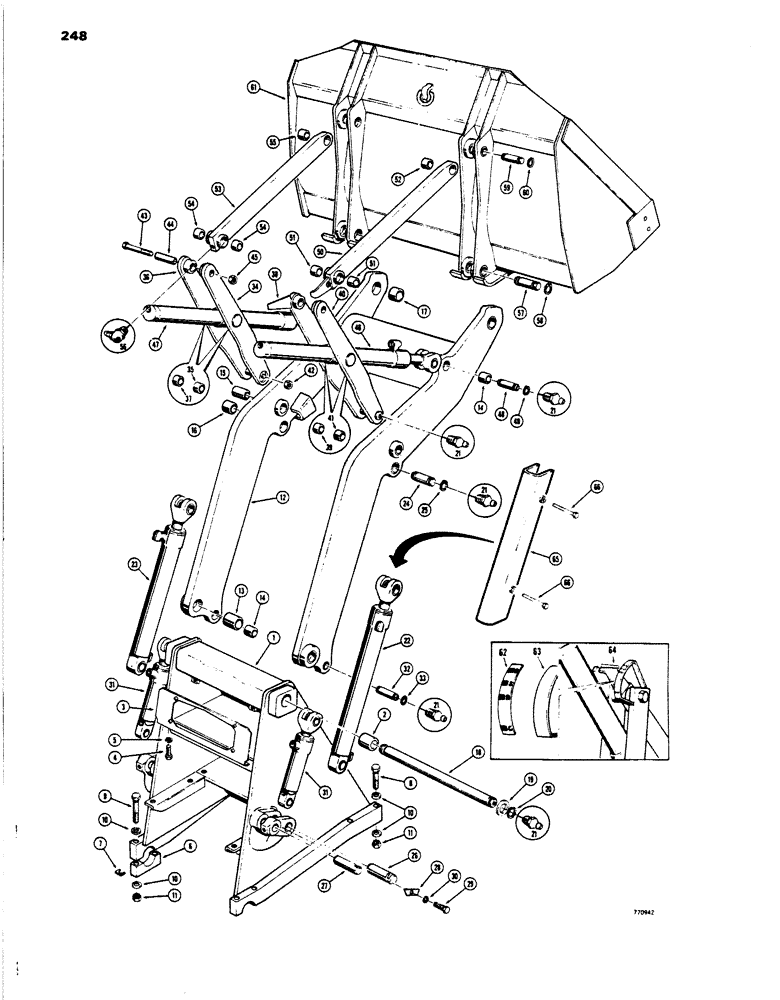

Запчасти Case 450 (248) - LOADER (05) - UPPERSTRUCTURE CHASSIS

1

R38117

COWL

FRAME AND COWL - loader, Includes: Ref. 2

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- cowl and upright

2шт.

3

D34652

PANEL ASSY.

DASH - loader

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

D34663

CLAMP

- moumtin, cowl and frame

2шт.

7

D33982

BUSHING

SPACER - clamp

2шт.

8

13-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

4шт.

9

13-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

HHCS - 7/8" - 9 NC x 7-1/2"

4шт.

10

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

16шт.

11

230-41114

LOCK NUT,7/8"-9, GA

NUT - hex self lock, 7/8" - 9 NC

8шт.

12

R39200

ARM

- lift, loader, Includes: Ref. 13 - 17

1шт.

13

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- rear pivot

2шт.

14

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- hydra-leveling and dump cylinder pivot

4шт.

15

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- dump link pivot

2шт.

16

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift cylinder pivot

2шт.

17

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket pivot

2шт.

18

D34659

PIN

ROD - pivot, lift arm

1шт.

19

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

2шт.

20

D34664

RING

- retaining

2шт.

21

21901

PIN

FITTING - straight grease 1/8" NPT

10шт.

22

REF

INSTRUCTION

CYLINDER - lift, R.H., See Figures 174 and 176 for proper cylinders

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, L.H. See Figures 174 and 176 for proper cylinders

1шт.

24

D34658

PIN,44.45mm OD x 101.6mm L

- mounting

2шт.

25

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

26

D34660

PIN

- mounting

2шт.

27

D34661

PIN

- mounting

2шт.

28

D34662

BLOCK

- retaining

2шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

REF

INSTRUCTION

CYLINDER - hydra-leveling, See Figures 182 and 184 for proper cylinders

2шт.

32

D34656

PIN,38.1mm OD x 101.6mm L

- mounting

2шт.

33

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

34

D34642

LINK

- inner, L.H., Includes: Ref. 35

1шт.

35

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- inner link

1шт.

36

D34647

LINK

- outer, L.H., Includes: Ref. 37

1шт.

37

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- outer link

1шт.

38

D44628

LINK

- inner, R.H., Includes: Ref. 39

1шт.

39

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

1шт.

40

R30524

LINK - outer, R.H., Models with return-to-dig feature, Includes: Ref. 41

1шт.

41

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

1шт.

42

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex self lock, 3/4" - 10 NC

2шт.

PIN IN LOWER HOLE OF DUMP LINKS (NUT REF 42 ATTACHES TO) IS D34644

1шт.

43

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

HHCS - 3/4" - 10 NC x 6-1/2"

2шт.

44

D34653

PIN

BUSHING - dump link

2шт.

45

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex self lock, 3/4" - 10 NC

2шт.

46

REF

INSTRUCTION

CYLINDER - dump, R.H., See Figures 178 and 180 for proper cylinders

1шт.

47

REF

INSTRUCTION

CYLINDER - dump, L.H., See Figures 178 and 180 for proper cylinders

1шт.

48

D34656

PIN,38.1mm OD x 101.6mm L

- mounting

2шт.

49

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

50

D34651

LINK

- dump, R.H., Includes: Ref. 51 and 52

1шт.

51

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- Rear

2шт.

52

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- Front

1шт.

53

D34650

LINK

- dump, L.H., Includes: Ref. 54 and 55

1шт.

54

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- Rear

2шт.

55

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

-Front

1шт.

56

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

57

D34655

PIN,50.8mm OD x 111.13mm L

- mounting

2шт.

58

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.

59

D34654

PIN

- mounting

2шт.

60

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

61

REF

INSTRUCTION

BUCKET - loader, parts list Figure 252

1шт.

62

D39304

DECAL

- clam bucket position

1шт.

63

D39314

BAND

BRACKET - indicator, clam bucket position

1шт.

64

D39315

PIN

POINTER - indicator, clam bucket position

1шт.

65

R38895

STRUT - safety

1шт.

66

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" NC x 3-1/2"

2шт.
