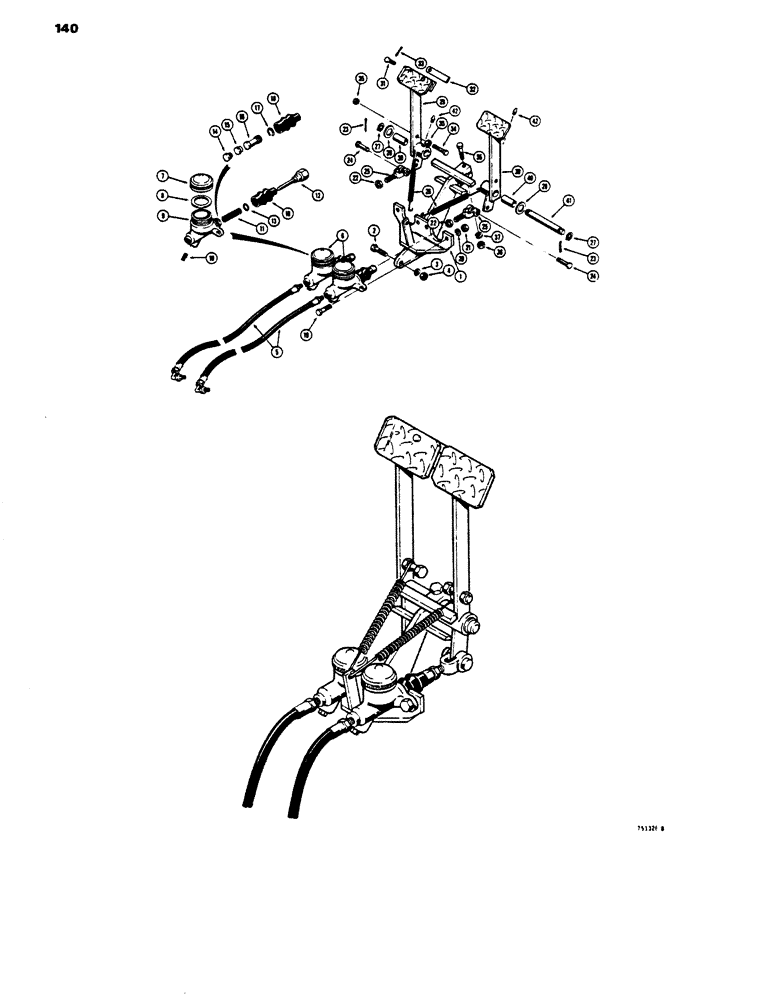

Запчасти Case 450 (140) - BRAKE PEDALS (05) - UPPERSTRUCTURE CHASSIS

1

R31439

BRACKET

SUPPORT - brake mounting

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

D45396

HOSE,3.17mm ID x 419.1mm L

- 16" (406 mm) long

2шт.

6

D39824

CYLINDER

- master, brake, Includes: Ref. 7 - 17

2шт.

7

D42448

CAP

- filler, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - cap

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

10

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

11

D42444

SPRING

- return

1шт.

12

D42446

ROD

- push

1шт.

D42442

REPAIR KIT

KIT - rebuild, master cylinder, Includes: Ref. 13 - 18

1шт.

13

D42445

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE AND SEAT - master cyliner

1шт.

15

NSS

NOT SOLD SEPARAT

CUP - master cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

18

D42443

BOOT

- master cylinder

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, lock, 7/16" - 20 NF

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke

2шт.

25

D38620

YOKE

- adjustable

2шт.

26

R33370

SPRING

- pedal return

2шт.

27

T25683

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

28

195-45

WASHER,3/4"

2шт.

29

D48604

PEDAL ASSY.

PEDAL - brake, L.H., Includes: Ref. 30

1шт.

30

R29752

BUSHING

- pedal

1шт.

31

141-3

CLEVIS PIN,5/16" x .940"

PIN - lock

1шт.

32

D42840

LOCK

- brake pedal

1шт.

33

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex lock, 3/8" - 16 NC

4шт.

36

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

37

92-8

LOCK WASHER,1/2"

1шт.

38

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

39

D48605

BRAKE ASSY.

PEDAL - brake, R.H., Includes: Ref. 40

1шт.

40

R29752

BUSHING

- pedal

1шт.

41

D34915

SHAFT

- pedal

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.
