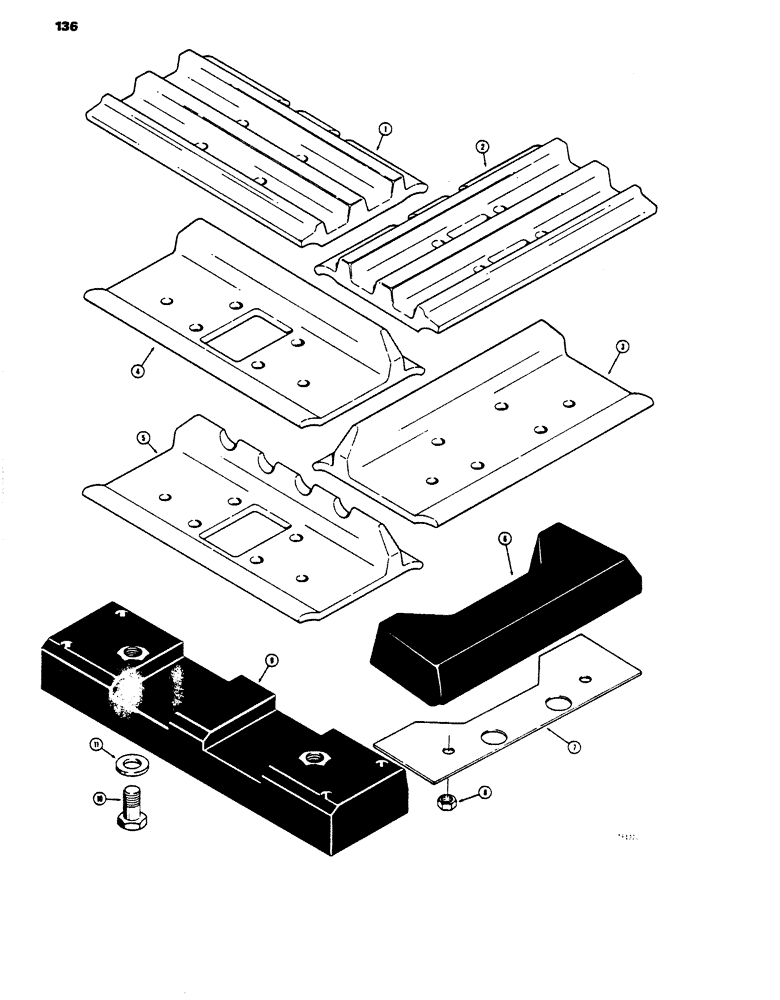

Запчасти Case 450 (136) - TRACK SHOES (OVER LAPPING), SEMI-GROUSER, CLOSED (04) - UNDERCARRIAGE

1

R24586

SHOE - track, 10" (254 mm) All models

72шт.

1

R24587

TRACK SHOE

SHOE - track, 11" (279 mm) All models

72шт.

1

R24588

TRACK SHOE

SHOE - track, 12" (304 mm) All models

72шт.

1

R24589

TRACK SHOE

SHOE - track, 13" (331 mm) All models except Angle Tilt Dozer

72шт.

1

R24590

TRACK SHOE

SHOE - track, 14" (356 mm) All models

72шт.

1

R24594

TRACK SHOE

SHOE - track, 14" (356 mm) L.H., offset, All models except Angle Dozer

36шт.

1

R24595

TRACK SHOE

SHOE - track, 14" (365 mm) R.H., offset, All models except Angle Dozer

36шт.

1

R24591

TRACK SHOE

SHOE - track, 16" (406 mm) Drawbar and Angel Tilt Dozers

72шт.

1

R24592

TRACK SHOE

SHOE - track, 18" (457 mm) Drawbar Models

72шт.

1

R24593

SHOE

- track, 20" (508 mm) Drawbar Models

72шт.

2

R24725

TRACK SHOE

SHOE - track, 12" All models, semi-grouser open center

72шт.

2

R24726

TRACK SHOE

SHOE - track, 14" Drawbar and Angle Dozers, semi-grouser open center

72шт.

2

R24727

TRACK SHOE

SHOE - track, 16" (406 mm) Drawbar and Angle Tilt Dozers, semi-grouser open center

72шт.

3

R32889

TRACK SHOE

SHOE - track, 12" (304 mm) All models, grouser closed

72шт.

3

R32892

PLATE

SHOE - track, 14" (356 mm) Drawbar and Dozer Models, grouser closed

72шт.

3

R32890

TRACK SHOE

SHOE - track, 1/4" (356 mm) L.H., offset, All models except Angle Dozer, grouser closed

36шт.

3

R32891

PLATE

SHOE - track, 14" (356 mm) R.H., offset, All models except Angle Dozer, grouser closed

36шт.

3

R32893

TRACK SHOE

SHOE - track, 16" (406 mm) Drawbar and Angle Tilt Dozers, grouser closed

72шт.

3

R32894

TRACK SHOE

SHOE - track, 18" (457 mm) Drawbar Models, grouser closed

72шт.

3

R32895

TRACK SHOE

SHOE - track, 20" (508 mm) Drawbar Models, grouser closed

72шт.

4

R32896

TRACK SHOE

SHOE - track, 12" (304 mm) All models, grouser open center

72шт.

4

R32899

TRACK SHOE

SHOE - track, 14" (356 mm) Drawbar and Angle Dozer, grouser open center

72шт.

4

R32897

TRACK SHOE

SHOE - track, 14" (356 mm) L.H., offset, All models except Angle Dozer, grouser open center

36шт.

4

R32898

PLATE

SHOE - track, 14" (356 mm) R.H., offset, All models except Angel Dozer, grouser open center

36шт.

4

R32900

PLATE

SHOE - track, 16" (406 mm) Drawbar and Angle Tilt Dozers, grouser open center

72шт.

4

R32901

TRACK SHOE

SHOE - track, 18" (457 mm) Drawbar models, grouser open center

72шт.

4

R32902

TRACK SHOE

SHOE - track, 20" (508 mm) Drawbar models, grouser open center

72шт.

5

R24605

TRACK SHOE

SHOE - track, 12" (304 mm) All models, grouser ice

72шт.

5

R24606

TRACK SHOE

SHOE - track, 14" (356 mm) Drawbar and Angle Dozers, grouser ice

72шт.

5

R24607

TRACK SHOE

SHOE - track, 16" (406 mm) Drawbar and Angle Tilt Dozers, grouser ice

72шт.

D13470

X

KIT - rubber track shoe (Used on R32889, R32890, R32892, R32896, R32897, R32898, and R32899 shoes only) Machinery item, grouser ice, Includes: Ref. 6 - 8

1шт.

D13470 No Longer Available, order the prime parts.

1шт.

6

R31222

SHOE

- track, rubber

74шт.

7

R31214

SHIM,.135" Thk

Rubber track shoes .135" Thk

148шт.

8

131-367

LOCK NUT

NUT - hex, self lock, 1/2" x 20 NF, rubber track shoes

148шт.

R5627

KIT - rubber track shoes (Used on R32893, R32894, R32895, R32900, R32901, and R32902 shoes only) Machinery Item, Includes: Ref. 9 - 11

1шт.

R5627 No Longer Available

1шт.

9

R38862

SHOE

- rubber, track

74шт.

10

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Rubber track shoes Hex, 5/8"-11 x 1 1/4", G5, Full Thd

148шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, rubber track shoes

148шт.
