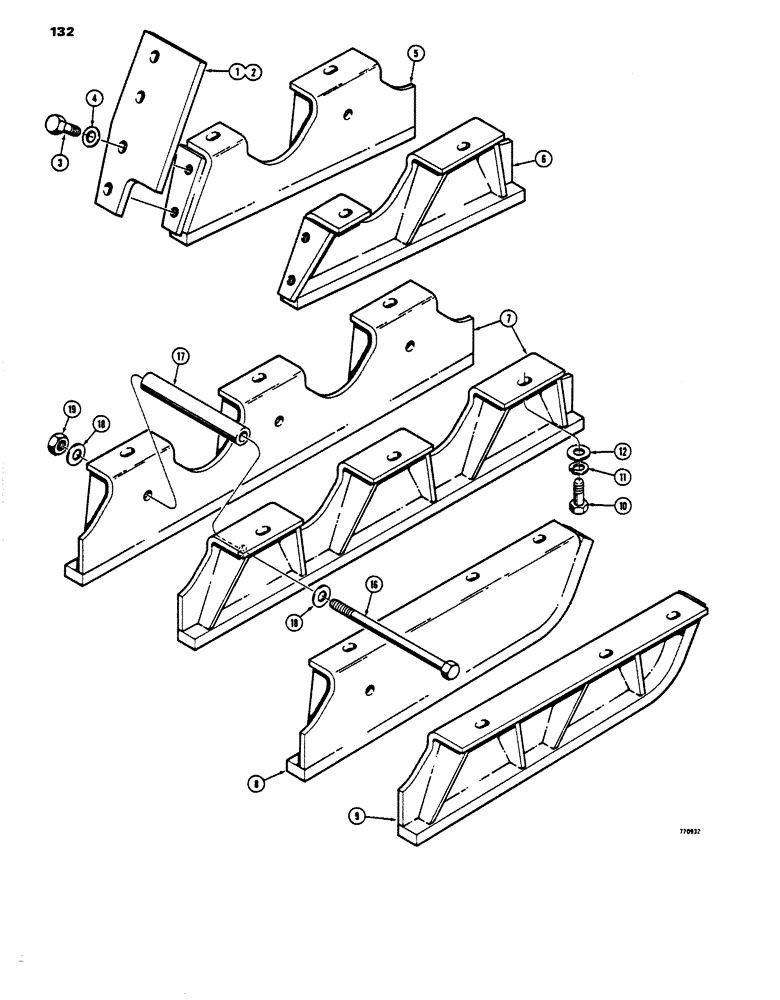

Запчасти Case 450 (132) - TRACK GUIDES (ROCK GUARDS), TRACTOR SN. 3062256 AND AFTER (04) - UNDERCARRIAGE

1

R36667

COVER

GUARD - sprocket, outer

2шт.

2

R36667

COVER

GUARD - sprocket, inner

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

16шт.

4

R24718

WASHER

- hardened

16шт.

5

R36676

GUARD

TRACK GUIDE - rear, L.H.

2шт.

6

R36677

GUARD

TRACK GUIDE - rear, R.H.

2шт.

7

R36673

GUARD

TRACK GUIDE - center

4шт.

8

R36674

GUARD

TRACK GUIDE - front, L.H.

2шт.

9

R36675

GUARD

TRACK GUIDE - front, R.H.

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

32шт.

11

92-8

LOCK WASHER,1/2"

32шт.

12

195-33

WASHER,1/2"

- flat, 1/2"

32шт.

16

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

HHCS - 1/2" - 13 NC x 8-1/2"

10шт.

17

R36665

GUARD

SPACER - track guide

10шт.

18

R24718

WASHER

- hardened

20шт.

19

131-654

LOCK NUT,1/2"-13, GB

NUT - hex self lock, 1/2" - 13 NC

10шт.
