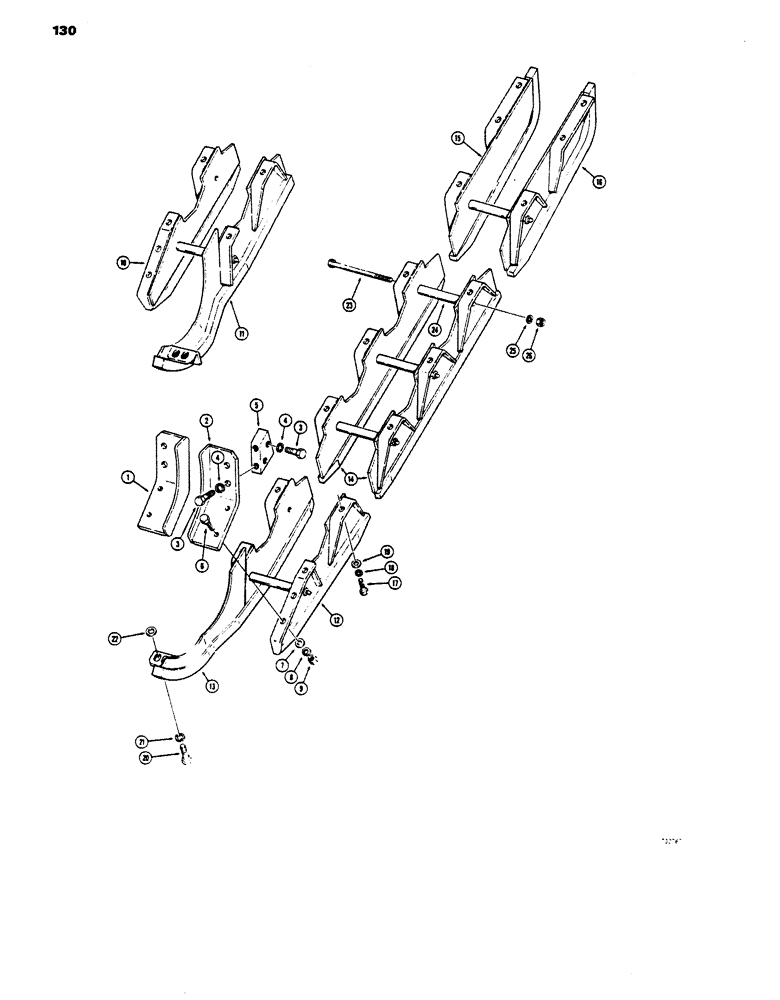

Запчасти Case 450 (130) - TRACK GUIDES, BEFORE TRACTOR SN. 3062256 (04) - UNDERCARRIAGE

1

R24530

GUARD

- sprocket, outer (L.H.)

1шт.

2

R24531

GUARD

- sprocket, outer (R.H.)

1шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

D39560

BLOCK

- sprocket guard mounting

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

10

R24534

GUARD ASSY.

TRACK GUIDE - rear, outer, L.H.

1шт.

11

R24527

PIN

TRACK GUIDE - rear, inner, L.H.

1шт.

12

R24535

GUARD

TRACK GUIDE - rear, outer, R.H.

1шт.

13

R24526

PIN

TRACK GUIDE - rear, inner, R.H.

1шт.

14

D35387

GUIDE

TRACK GUIDE - center

4шт.

15

R24524

GUARD

TRACK GUIDE - front, L.H.

2шт.

16

R24525

GUARD ASSY.

TRACK GUIDE - front, R.H.

2шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

32шт.

18

92-8

LOCK WASHER,1/2"

32шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

32шт.

20

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

195-41

WASHER,5/8"

2шт.

23

15-8148

BOLT (SPREADER),Hex, 1/2" - 13 x 9-1/4", Gr 5

HHCS - 1/2" - 13 NC x 9-1/4"

10шт.

24

R24722

SPACER

- track guide

10шт.

25

92-8

LOCK WASHER,1/2"

10шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

10шт.
