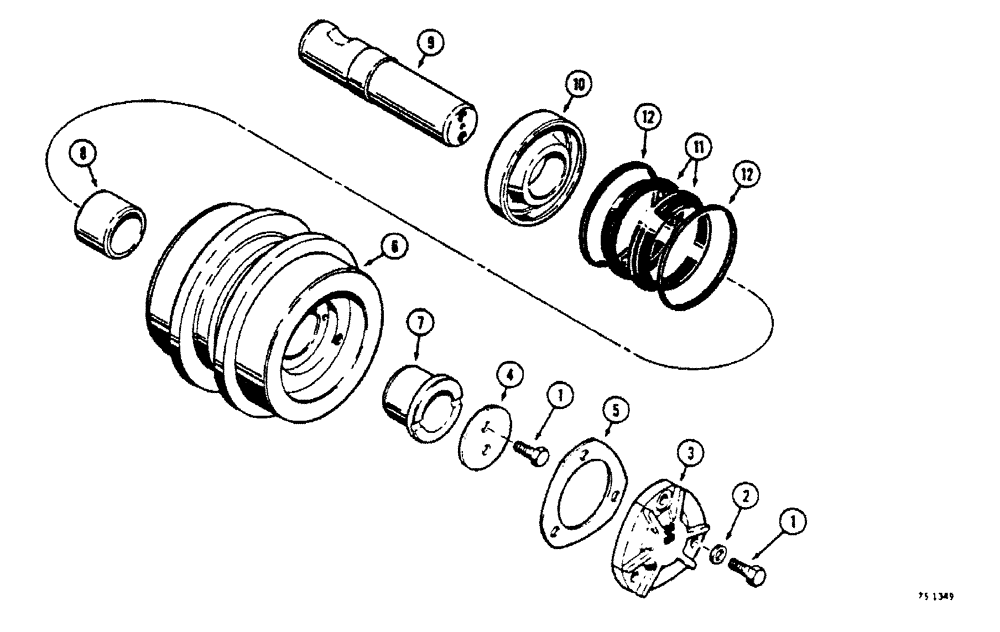

Запчасти Case 450 (128[1]) - R33965 TRACK CARRIER ROLLER FOR IDENTIFICATION - SEE REF 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R33965

ROLLER

ROLLER - track carrier, Includes: Ref. 1 - 12

2шт.

1

513-704

BOLT

HHCS - M10 x 1.5 x 20 grade 8.8

5шт.

2

D32117

COPPER WASHER

1шт.

3

R33959

CYLINDER END CAP

CAP - roller

1шт.

4

R33960

PLATE

RETAINER - washer

1шт.

5

R33964

GASKET

GASKET - cap

1шт.

R33967

CARRIER

HUB ASSEMBLY - roller, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

7

R33951

BUSHING

BUSHING - roller

1шт.

8

R33958

BUSHING

BUSHING - roller

1шт.

R33969

SHAFT

SHAFT ASSEMBLY - roller, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

10

R33962

RETAINER

RETAINER - seal

1шт.

R33607

SEAL

SEAL - face, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.
