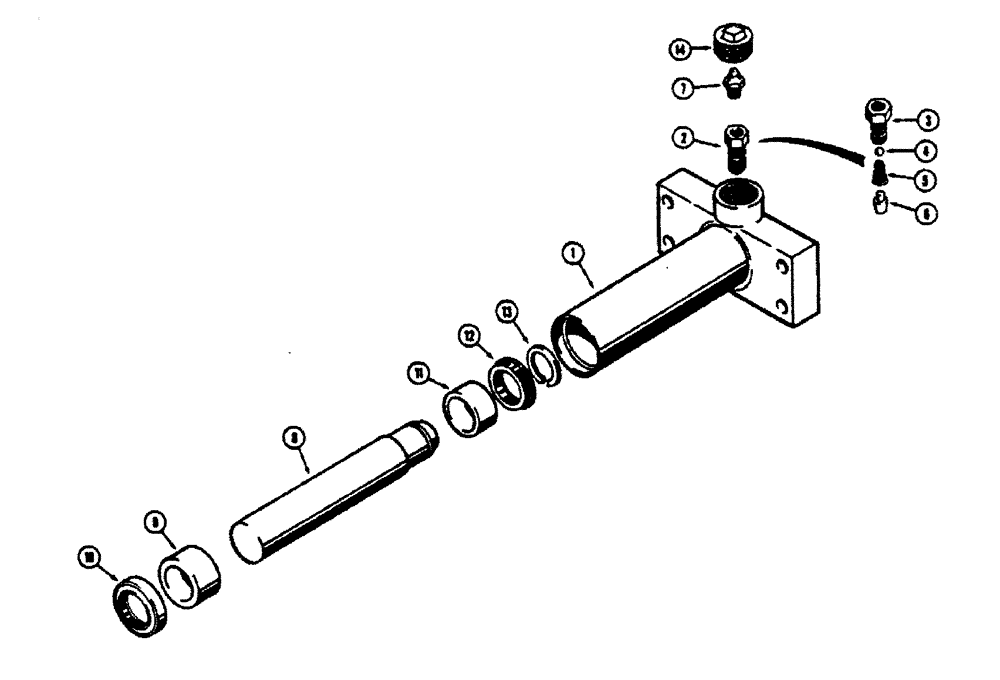

Запчасти Case 450 (124) - TRACK ADJUSTER (04) - UNDERCARRIAGE

R29709

ADJUSTER

HYDRAULIC ADJUSTER - track, Includes: Ref. 1 - 14

2шт.

1

R24561

TUBE

- cylinder, track adjuster

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - complete, track adjuster, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, track adjuster

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - check, track adjuster

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check ball, track adjuster

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - body, track adjuster

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8 NPT), track adjuster

1шт.

8

R51793

PISTON

- cylinder (replaces R29669), track adjuster

1шт.

Uses an additional spacer, R51794

1шт.

9

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- rider, track adjuster

1шт.

10

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston, track adjuster

1шт.

11

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

BEARING - back up, track adjuster

1шт.

12

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

PACKING - "U" cup, track adjuster

1шт.

13

A27085

RING

- snap, piston, track adjuster

1шт.

14

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

pipe, track adjuster Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.
