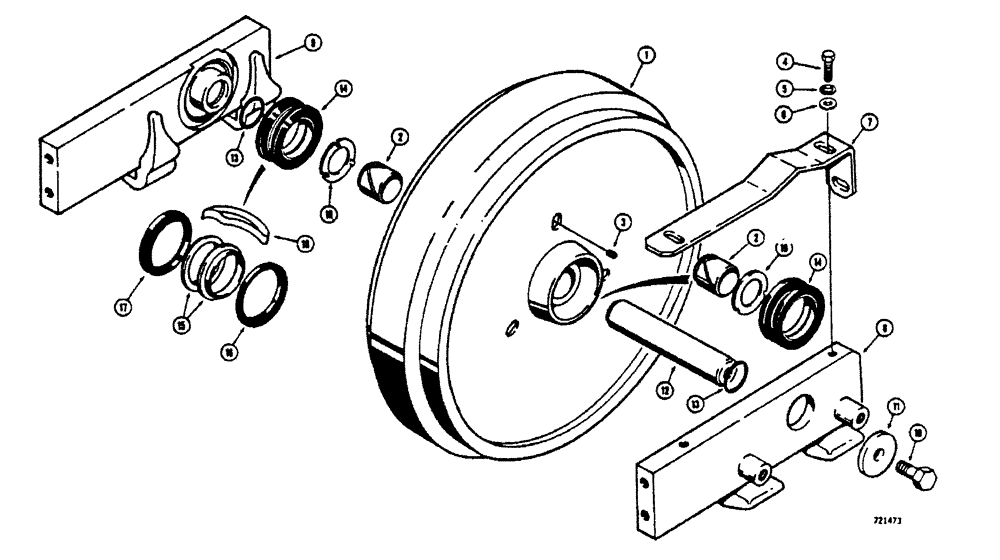

Запчасти Case 450 (124[1]) - IDLER WHEEL (04) - UNDERCARRIAGE

R24625

FRONT IDLER

IDLER WHEEL - complete., Includes: Ref. 1 - 19

2шт.

R36629

FRONT IDLER

IDLER WHEEL - complete, Includes: Ref. 1 - 19

2шт.

1

R24626

HUB CAP

HUB - idler wheel, Includes: Ref. 2

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

BUSHING - split

2шт.

3

221-841

PLUG

PLUG - hex socket, 1/4" NPT

1шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

6

R24323

WASHER

WASHER - special

6шт.

7

R24642

COVER

COVER - idler bracket

2шт.

8

R36614

BRACKET

BRACKET - R. H.

1шт.

9

R36613

BRACKET

BRACKET - L. H.

1шт.

10

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

11

D21262

WASHER

WASHER - special

2шт.

12

R24644

SHAFT

SHAFT - idler

1шт.

13

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING

2шт.

14

R39273

SEAL

SEAL - face, Includes: Ref. 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

BODY - seal, split KIT - Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

19

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

WASHER - thrust

2шт.
