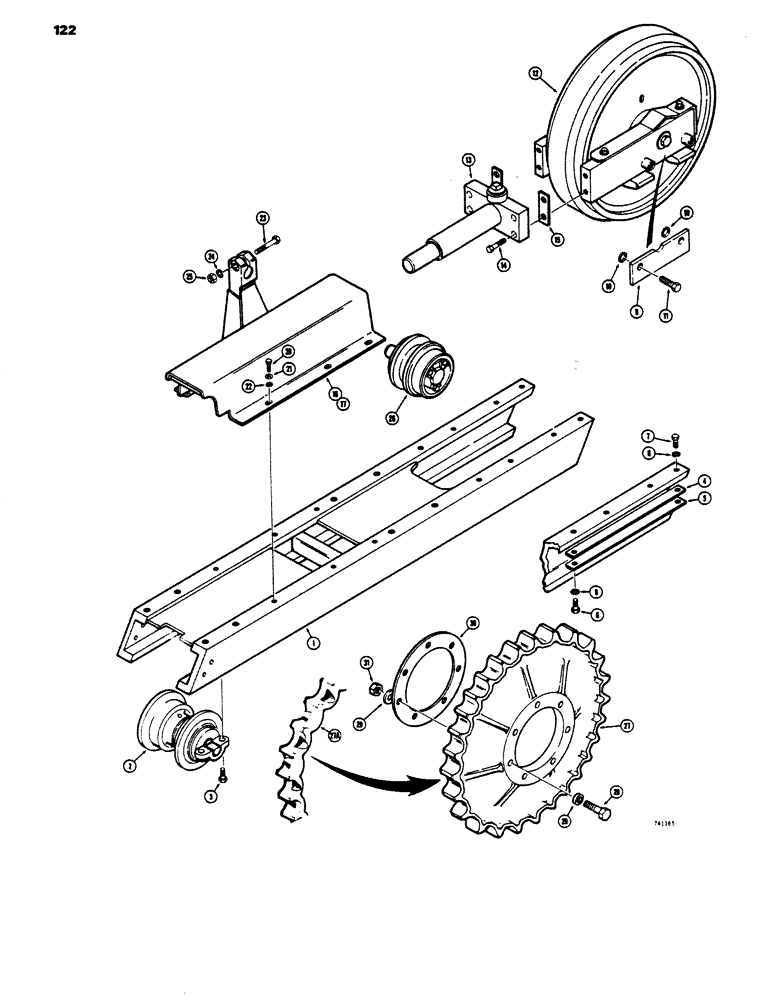

Запчасти Case 450 (122) - TRACK FRAME AND RECOIL SYSTEM (04) - UNDERCARRIAGE

1

R29682

FRAME

Track (Drawbar and Loader Models), used before tractor S/N 3062256

2шт.

1

R29684

SPARE PART Track, LH, (Angle Tilt Dozer Models), used before tractor S/N 3062256

1шт.

1

R29683

SPARE PART Track, RH, (Angle Tilt Dozer Models), used before tractor S/N 3062256

1шт.

1

R29685

SPARE PART FRAME - track, LH, (Angle Dozer Models), used before tractor S/N 3062256

1шт.

1

R29686

FUNNEL

FRAME Track, RH, (Angle Dozer Models), used before tractor S/N 3062256

1шт.

1

R36606

FRAME

Track, (Drawbar and Loader Models), used tractor S/N 3062256 and after

2шт.

1

R36609

SPARE PART Track, LH, (Angle Dozer Models), used tractor S/N 3062256 and after

1шт.

1

R36610

SPARE PART Track, RH, (Angle Dozer Models), used tractor S/N 3062256 and after

1шт.

1

R36607

FRAME

Track, RH, (Angle Tilt Dozer Models), used tractor S/N 3062256 and after

1шт.

1

R36608

FRAME

Track, LH, (Angle Tilt Dozer Models), used tractor S/N 3062256 and after

1шт.

2

REF

INSTRUCTION

ROLLER - track, see Figures 126 and 128, all models

10шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

All models

40шт.

4

D35290

STRIP

SHIM - .0149" (.2734 mm) thick, all models

1шт.

5

D35276

PLATE

Wear, track channel, all models

4шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

All models

4шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

All models

4шт.

8

92-10

LOCK WASHER,5/8"

All models

8шт.

9

D35269

PLATE

BAR - guide, idler, all models

4шт.

10

D35268

SHIM,1/32" Thk

(76 mm), All models

1шт.

11

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

All models

8шт.

12

REF

INSTRUCTION

IDLER WHEEL - complete, see Figure 124, all models

2шт.

13

R29709

ADJUSTER

Track, hydraulic, parts list Figure 124, all models

2шт.

14

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

All models

8шт.

15

R29690

SHIM,.032" Thk

(.813 mm), All models

1шт.

16

R29582

HOUSING

Recoil and carrier roller bracket, includes spring (RH), all models

1шт.

17

R29581

HOUSING

Recoil and carrier roller bracket, includes spring (LH), all models

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

All models

12шт.

21

195-33

WASHER,1/2"

All models

12шт.

22

92-8

LOCK WASHER,1/2"

All models

12шт.

23

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

All models

2шт.

24

92-8

LOCK WASHER,1/2"

All models

2шт.

25

25-108

NUT,1/2"-13, G5

All models

2шт.

26

REF

INSTRUCTION

TRACK CARRIER ROLLER - see Figures 126 and 128, all models

2шт.

27

R24569

DRIVE SPROCKET

50" (1270 mm) gauge models (Standard Service) (2.362" Wide)

2шт.

27

R24570

DRIVE SPROCKET

52" (1321 mm) gauge models (Standard Service)

2шт.

27a

R32724

SPARE PART 52" (1321 mm) gauge models (Service option) Relieved

2шт.

27a

R32765

SPARE PART 50" (1270 mm) gauge models (Service option) Relieved

2шт.

28

R27954

BOLT

Special, all models

14шт.

29

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Hardened, all models

28шт.

30

D39530

SHIM,.03125" Thk

(.76 mm), All models

1шт.

31

280375

NUT,3/4"-10, GC

Hex, all models

14шт.
