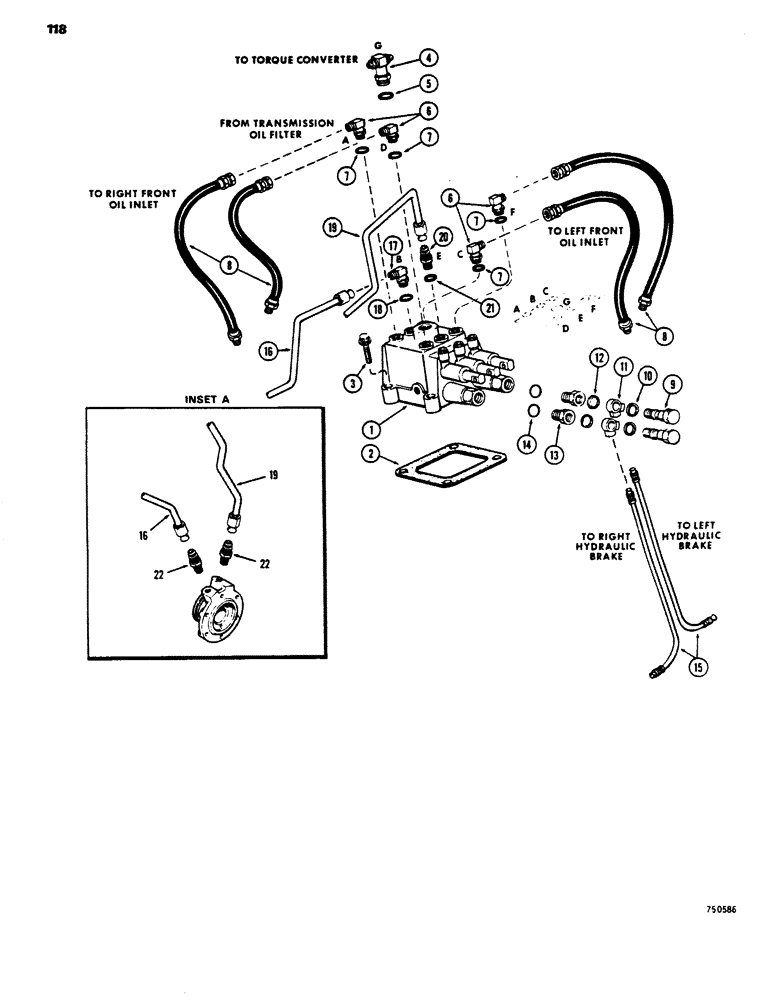

Запчасти Case 450 (118) - TRANSMISSION HYDRAULIC LINES (03) - TRANSMISSION

1

R20724

VALVE

ASSEMBLY - control, parts list Figure 120

1шт.

2

A50113

GASKET

-valve to transmission case

2шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SCREW - 3/8" - 16 NC x 2", 12 pt. head

4шт.

4

A50356

FITTING

TEE - adjustable, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 deg., adjustable, Includes: Ref. 7

4шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

- 19-1/2" long (495 mm)

4шт.

9

A12864

BOLT

- connection, brake tube

2шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

2шт.

11

51200243

FITTING

- brake line hydraulic

2шт.

12

NLS

NO LONGER SERVICED

- fitting, inner

2шт.

13

72125

ADAPTER

- brake tube fitting bolt

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

15

A50358

TUBE

- valve to L.H. and R.H. brake cylinders

2шт.

16

A54112

TUBE

- valve elbow to cover (Forward)

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 deg.,adjustable, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

A50471

TUBE

- valve connector to cover (Reverse)

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male, Incl. Ref. 21

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight, male

2шт.
