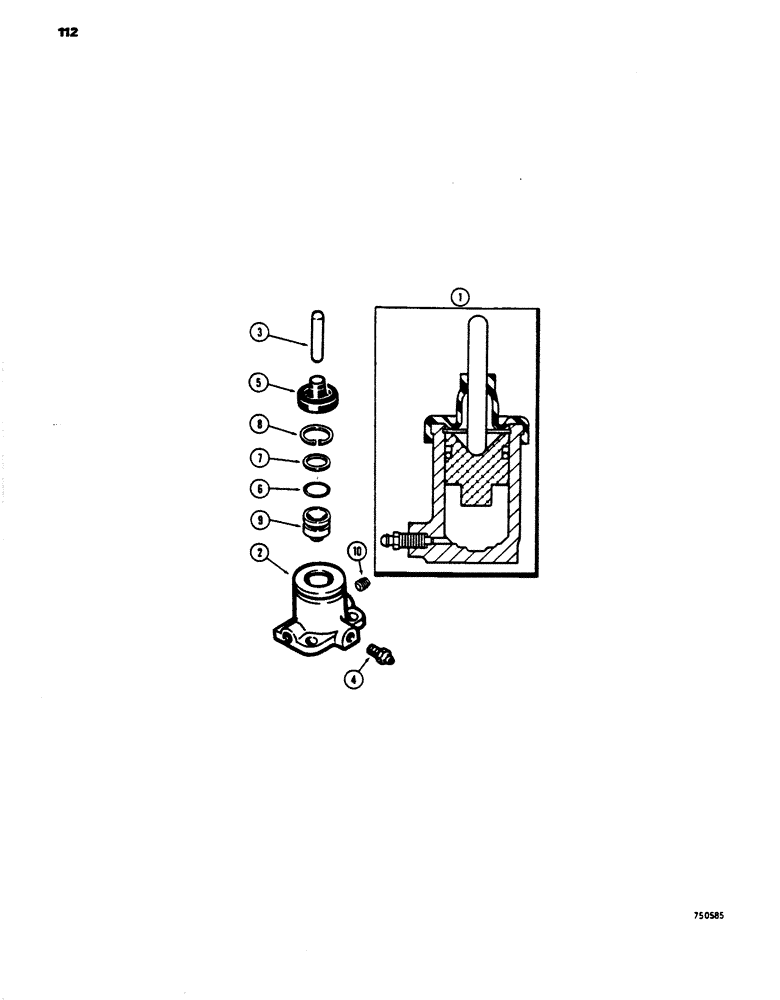

Запчасти Case 450 (112) - TRANSMISSION HYDRAULIC BRAKE CYLINDERS (03) - TRANSMISSION

1

A50557

CYLINDER

ASSEMBLY, Includes: Ref. 2 - 9

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

3

A41489

ROD

- push, brake cylinder

1шт.

4

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, cylinder

1шт.

A42875

SEAL

KIT - brake cylinder repair, Includes: Ref. 5 - 7

1шт.

5

A41490

BOOT

- dust, push rod

1шт.

6

A42876

SEAL

O-RING - piston

1шт.

7

A42877

RING

- piston

1шт.

8

A30975

SNAP RING,1.188", Int, #118

piston 1.188", Int, #118

1шт.

9

A42874

PISTON

- cylinder

1шт.

10

222-1062

PLUG,7/16"-24, Inv Fl

- hex head, 7/16" - 14 NC

2шт.
