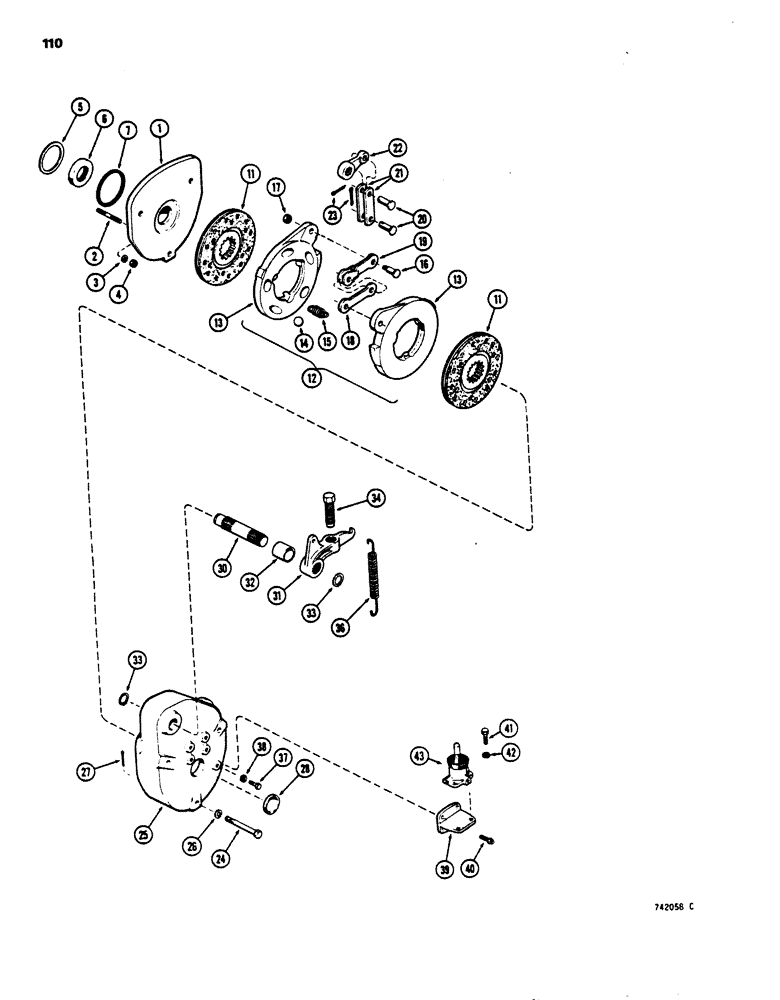

Запчасти Case 450 (110) - TRANSMISSION HYDRAULIC BRAKES (03) - TRANSMISSION

1

A50184

FLANGE

PLATE - mounting, L.H. and R.H. brake

2шт.

2

G102126

STUD

- 1/2" - 13 NC x 2-1/8"

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

8шт.

5

A50061

SHIM,0.076mm Thk

(.003") 0.076mm Thk

1шт.

5

A50062

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

5

A50063

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

6

A50418

OIL SEAL

- oil, pinion shaft

2шт.

7

A50055

SEALING RING

RING - seal, brake plate

2шт.

11

G100318

BRAKE DISC

DISC - double, Bonded

4шт.

12

R18531

DISC

ACTUATOR ASSEMBLY - brake, Includes: Ref. 13 - 19

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - actuator, brake

2шт.

14

211-19

BALL,7/8" Dia

- . steel 7/8" Dia

5шт.

15

A30897

SPRING

- actuator extension

3шт.

16

A30898

STEP BOLT

STUD - brake link

2шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF

2шт.

18

R18533

LINK

- single rib, actuator

1шт.

19

F77868

LINK

- yoke, actuating link

1шт.

20

R15370

PIN

- link, brake pull

4шт.

21

R15369

LINK

- brake pull

4шт.

22

R15372

LEVER

- brake link pull

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

24

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

25

A50206

COVER

- brake, R. H.

1шт.

25

A50207

COVER

- brake, L.H.

1шт.

26

92-8

LOCK WASHER,1/2"

6шт.

27

R14605

PIN

- cleaner, brake housing drain hole

4шт.

28

41-1628

PLUG,Cup, 1 3/4", Stainless

- 1-3/4" cup type

2шт.

30

A50514

SHAFT

- brake actuating

2шт.

31

A50393

LEVER

- adjusting, brake

2шт.

32

A50392

BUSHING

SPACER - brake shaft

2шт.

33

B18208

SNAP RING,#100, Ext

brake shaft #100, Ext

4шт.

34

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

BOLT - special, 3/4" - 16 NF x 2-3/4"

2шт.

36

A50589

SPRING

- return, brake lever

2шт.

37

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, lock, 3/8" - 16 NC

2шт.

39

A50119

BRACKET

- brake cylinder mounting

2шт.

40

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - 3/8" - 16 NC x 2", 12 pt. head

8шт.

41

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

43

REF

INSTRUCTION

CYLINDER ASSEMBLY - brake, parts list Figure 112

2шт.
