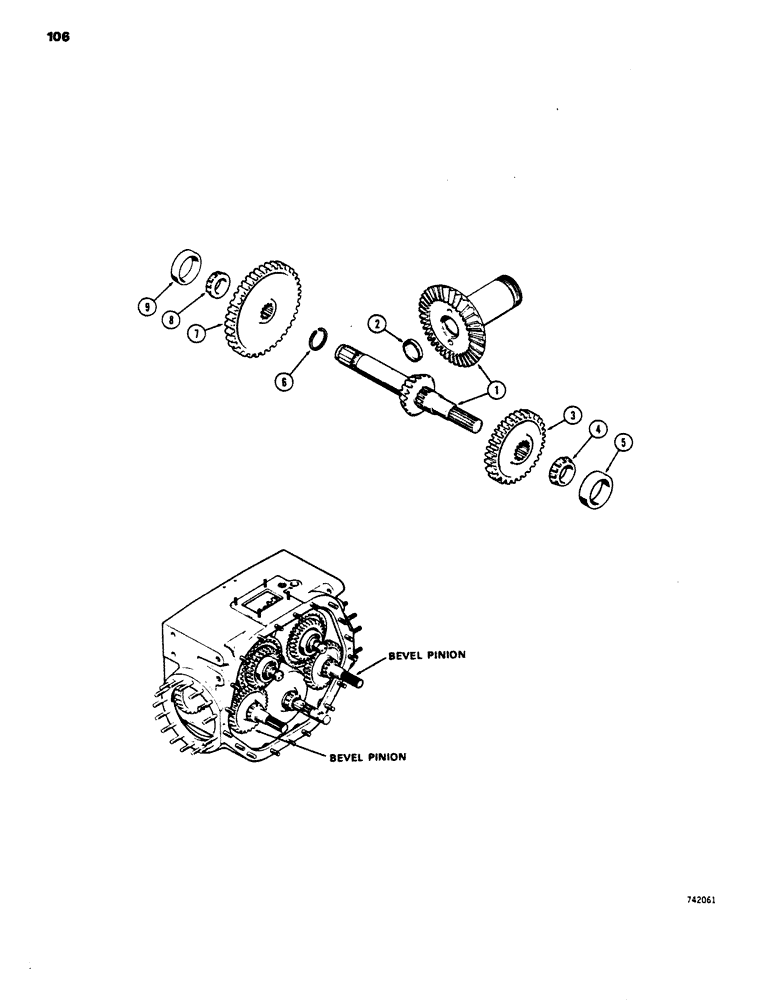

Запчасти Case 450 (106) - TRANSMISSION BEVEL PINION AND SHAFT (03) - TRANSMISSION

1

A50275

GEAR-SET

PINION AND GEAR SET - matched

2шт.

2

A50099

PLUG

- special

2шт.

3

A50512

GEAR

- drive, high clutch (A51924 and A51925 Transmission)

2шт.

3

A51930

GEAR

- drive, high clutch (A51924 and A51925 Transmission)

2шт.

4

A31264

ROLLER BEARING,1.625" ID x 1"

CONE - pinion shaft front bearing

2шт.

5

F62007

CUP

- pinion shaft front bearing

2шт.

6

A27085

RING

- snap, low clutch driven gear retaining

2шт.

7

A50575

GEAR

- driven, low clutch

2шт.

8

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

CONE - high-low clutch rear bearing

2шт.

9

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - high-low clutch rear bearing

2шт.
