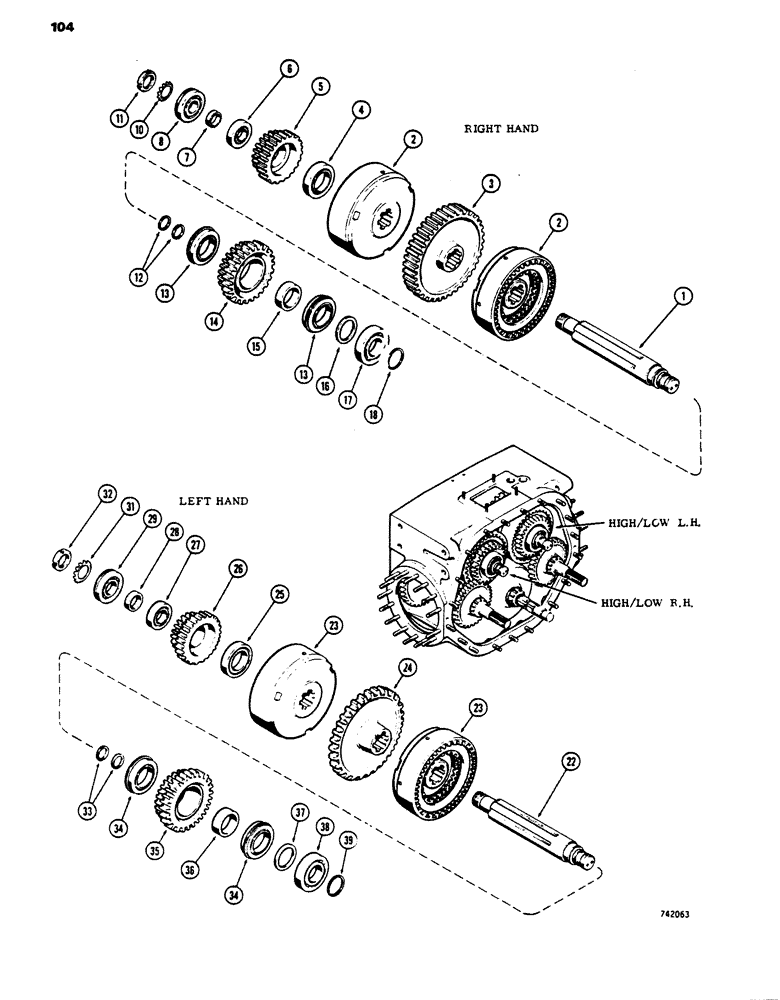

Запчасти Case 450 (104) - TRANSMISSION HIGH AND LOW CLUTCH SHAFTS, R.H. CLUTCH AND SHAFT (03) - TRANSMISSION

1

A50521

SHAFT

ASSY., Includes: Ref. 1A

1шт.

1a

211-7

BALL,1/4" Dia

- steel (Not shown) 1/4" Dia

1шт.

2

REF

INSTRUCTION

CLUTCH ASSEMBLY - high/low, parts list Figure 108

2шт.

3

A50508

GEAR

- drive

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner

1шт.

5

A50574

SHAFT

GEAR - drive, low clutch

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer

1шт.

7

A50036

RING

SPACER - low clutch drive gear bearing

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - clutch shaft, rear

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock

1шт.

11

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - hex, self lock

1шт.

12

A50389

SEAL

RING - seal

1шт.

13

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - high clutch gear

2шт.

14

A50509

GEAR WHEEL

GEAR - drive, high clutch

1шт.

15

A50035

BUSHING

SPACER - high clutch gear bearings

1шт.

16

A50034

SPACER

- front clutch shaft bearing

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, front

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap

1шт.

21

A50521

SHAFT

ASSEMBLY - L.H. clutch, Includes: Ref. 22

1шт.

22

211-7

BALL,1/4" Dia

- steel (Not shown), L.H. clutch and shaft 1/4" Dia

1шт.

23

REF

INSTRUCTION

CLUTCH ASSEMBLY - high/low, L.H. shaft, parts list Figure 108

2шт.

24

A50511

GEAR

- drive, L.H. clutch and shaft

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner, L.H.and shaft

1шт.

26

A50574

SHAFT

GEAR - drive, low clutch, L.H.and shaft

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer, L.H. and shaft

1шт.

28

A50036

RING

SPACER - low clutch drive gear bearing,L.H. and shaft

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - clutch shaft, rear, L.H.

1шт.

31

192-307

LOCK WASHER,Type W-07

WASHER - lock.L.H. clutch and shaft

1шт.

32

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - hex, self lock,L.H. clutch and shaft

1шт.

33

A50389

SEAL

RING - seal, L.H. clutch and shaft

2шт.

34

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - high clutch gear, L.H. and shaft

2шт.

35

A50509

GEAR WHEEL

GEAR - drive, high clutch, L.H. and shaft

1шт.

36

A50035

BUSHING

SPACER - high clutch gear bearings, L.H. and shaft

1шт.

37

A50034

SPACER

- front clutch shaft bearing, L.H.

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, front, L.H. clutch and shaft

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, L.H.clutch and shaft

1шт.
