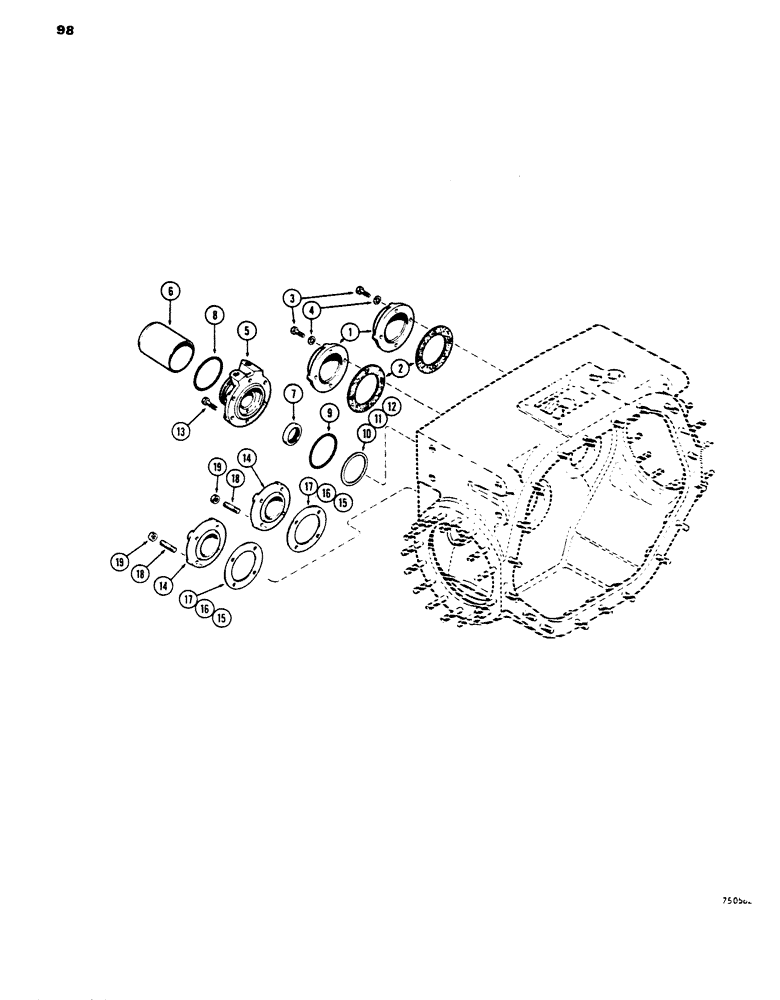

Запчасти Case 450 (098) - TRANSMISSION HOUSING REAR COVERS (03) - TRANSMISSION

1

A50060

COVER

- clutch shafts

2шт.

2

A50058

GASKET

- clutch covers

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

4

A22317

WASHER

- copper

8шт.

5

A50578

COVER

- forward-reverse and PTO shaft, uses 13-616 bolts

1шт.

5

G102243

COVER

- forward-reverse and PTO shaft, uses 13-618 and 13-632 bolts

1шт.

6

A54111

COVER

- PTO shaft

1шт.

7

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, PTO shaft

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- winch models only

1шт.

9

A50055

SEALING RING

RING - cover sealing, rubber

1шт.

10

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

11

40590

SHIM

- .005" (.127 mm)

1шт.

12

40591

SHIM

- .010" (2.54 mm)

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

A50578 cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

G102243 cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

5шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

G102243 cover Hex, 3/8"-16 x 2", G5

1шт.

14

A50271

COVER

- pinion shafts

2шт.

15

A50348

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

16

A50272

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

17

A50347

PIN

- .010" (2.54 mm)

1шт.

18

G102128

BOLT

- 3/8" 16 NC x 1-1/2"

8шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.
