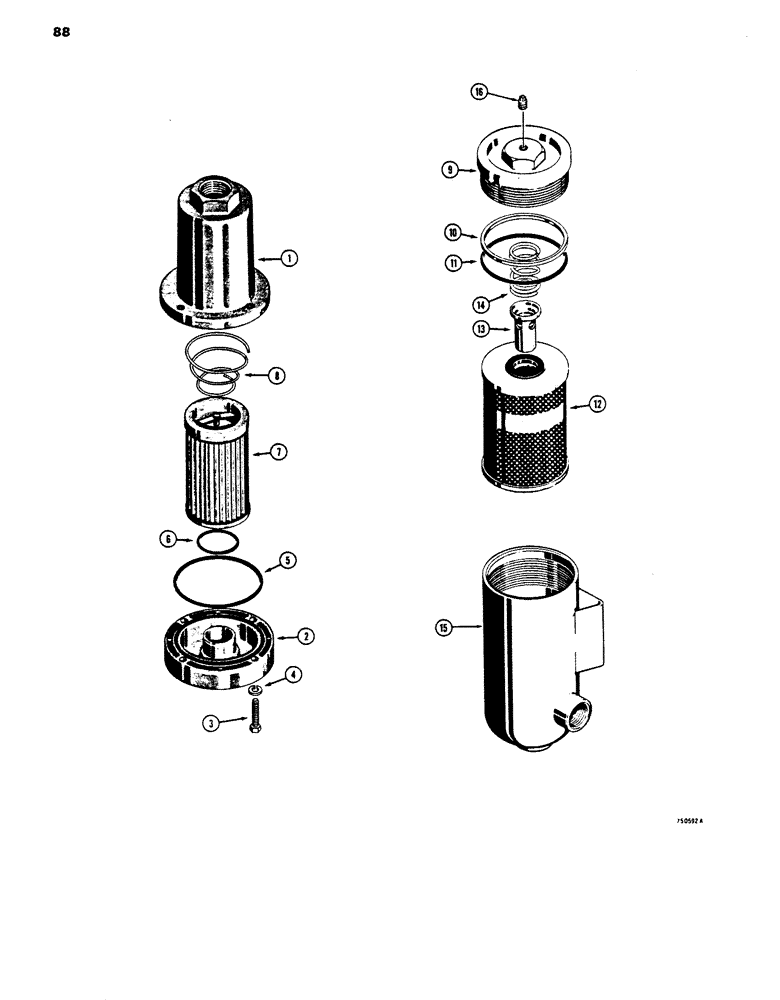

Запчасти Case 450 (088) - TRANSMISSION OIL FILTERS, D35144 TRANSMISSION OIL FILTER (03) - TRANSMISSION

D35144

FILTER

FILTER - transmission oil, suction line, Includes: Ref. 1 - 8

1шт.

1

D37033

HOUSING

- filter

1шт.

2

D37034

HEAD

- filter

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

- housing

1шт.

6

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

0-RING - element

1шт.

7

D37035

FILTER, ELEMENT

ELEMENT - filter

1шт.

8

D37036

SPRING

- element

1шт.

D46132

FILTER

- transmission oil, pressure line, Includes: Ref. 9 - 15

1шт.

9

D31214

CAP

- filter, D43132 transmission oil

1шт.

A65854

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, D43132 transmission oil, Includes: Ref. 10 - 12

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D43132 Transmission oil filter

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

D43132 transmission oil filter

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43132 transmission oil

1шт.

13

D37207

VALVE

- relief, D43132 transmission oil filter

1шт.

14

D31212

SPRING

- retaining, D43132 transmission oil filter

1шт.

15

D46130

HOUSING

BODY - filter, D43132 transmission oil

1шт.

G102080

FILTER

- transmission oil, pressure line, Includes: Ref. 9 - 16

1шт.

9

A60765

CAP

- filter ELEMENT KIT - filter, G102080 transmission oil filter, Includes: Ref. 10 - 12

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

G102080 Transmission oil filter

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

G102080 transmission oil filter

1шт.

12

G35446

FILTER, ELEMENT

ELEMENT - filter, G102080 transmission oil

1шт.

13

D37207

VALVE

- relief, G102080 transmission oil filter

1шт.

14

D31212

SPRING

- retaining, G102080 transmission oil filter

1шт.

15

G102079

BODY

- filter, G102080 transmission oil

1шт.

16

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - hex head, 1/8" NPT, G102080 transmission oil filter

1шт.
