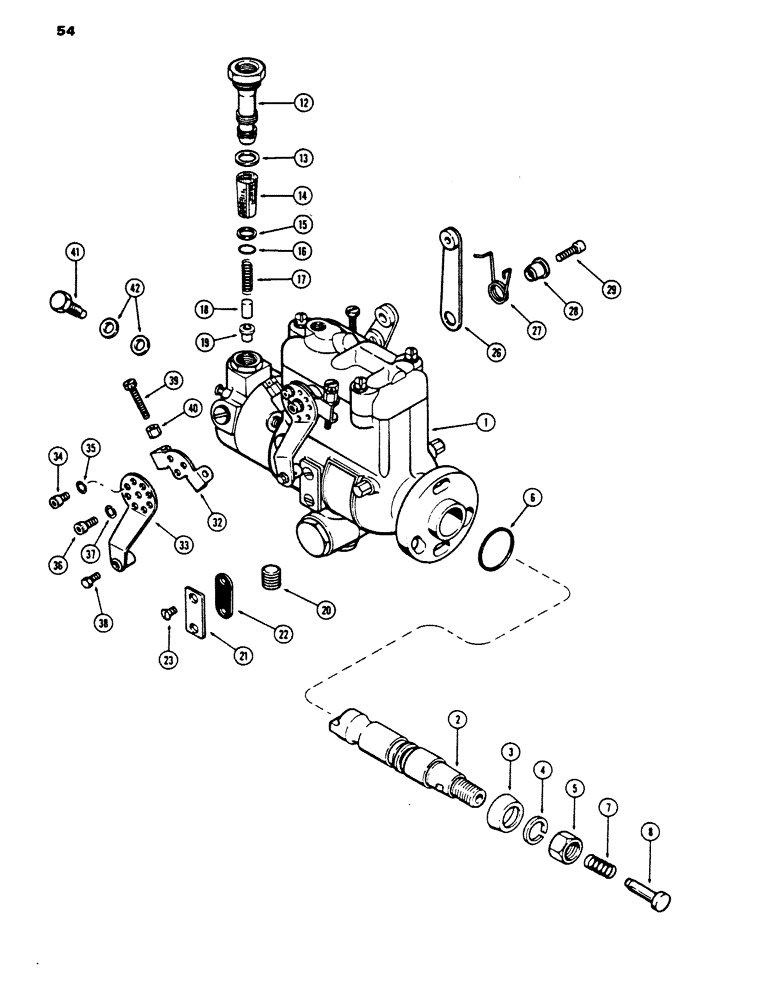

Запчасти Case 450 (054) - INJECTION PUMP, 207 DIESEL ENGINE (02) - FUEL SYSTEM

1

A148070

FUEL INJECTION PUMP

PUMP ASSY. - fuel injection (Rpl. A136239) (H.M.S. No. DBGFCC431-59AJ), Includes: Ref. 2 - 42

1шт.

2

A44710

SHAFT

ASSY. - drive, w/pin

1шт.

3

R14711

SEAL

- drive shaft

1шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

- 9/16" N.F. hex jam

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

7

G48502

SPRING

- thrust, pump shaft (1-3/16" free length)

1шт.

8

A44653

PLUNGER

- thrust spring

1шт.

12

A43869

SLEEVE

- end plate

1шт.

13

51200280

SEAL

- end plate sleeve

1шт.

14

A43870

FILTER, FUEL

FILTER - element

1шт.

15

A43871

SEAL

- element (3/8 x 1/2 x 1/16")

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

17

A43867

SPRING

- regulating (5/8" free length)

1шт.

18

73621

PISTON

- regulating

1шт.

19

A43868

SEAL

- regulating piston (rubber)

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

21

73452

COVER

- timing window

1шт.

22

73453

GASKET

- timing window cover

1шт.

23

NLS

NO LONGER SERVICED

- timing window cover

2шт.

26

G45338

ARM

- throttle

1шт.

27

G48505

SPRING

- throttle arm

1шт.

28

G49621

RETAINER

- throttle arm spring

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm

1шт.

32

G45337

ARM

- shut-off

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

34

165-1

SCREW,#8 x 1/4"

- position, shut-off arm

1шт.

35

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

36

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

37

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

38

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot

1шт.

39

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle adjusting

2шт.

40

86837534

LOCK WASHER

- lock, high idle adj. screw

2шт.

41

73613

SCREW

- connector, injection tubes

4шт.

42

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.
