(050) - FUEL FILTER, 207 DIESEL ENGINE

Запчасти Case 450 (050) - FUEL FILTER, 207 DIESEL ENGINE (02) - FUEL SYSTEM

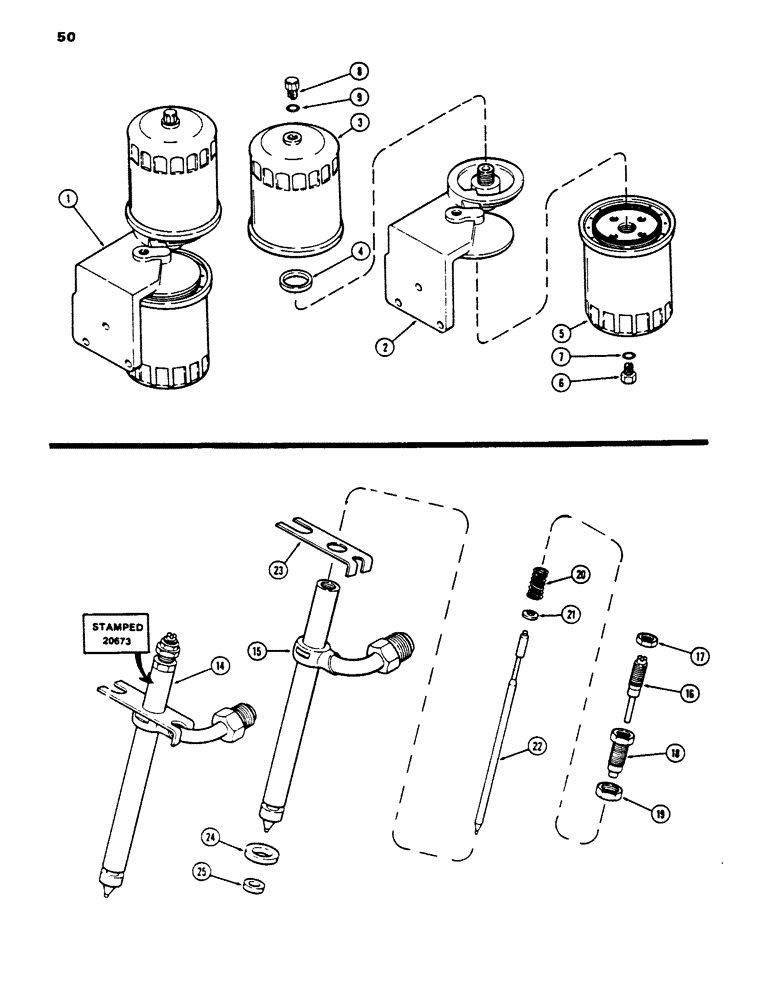

Схема запчастей Case 450 - (050) - FUEL FILTER, 207 DIESEL ENGINE (02) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A51739

FILTER

ASSY. - fuel, Includes: Ref. 2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - filter base

1шт.

3

A39867

FUEL FILTER

ASSY. - secondary (15/16" threads), Includes: Ref. 4

1шт.

4

A42315

GASKET

- filter to head (15/16 x 1-1/4 x 1/4")

1шт.

5

A39868

FUEL FILTER

ASSY. - primary (13/16" threads)

1шт.

6

G49080

PLUG

- drain, primary filter (3/8" N.F. 12 pt. hd. nylon)

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Drain, Secondary filter, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

14

A140828

FUEL SYSTEM INJECTOR

NOZZLE ASSY. - injector (Rpl. A140827) (Supplier's No. 20673 stamped on body) (color code white & yellow band), Includes: Ref. 15 - 25

4шт.

Whenever nozzle is removed from head washer (A41403) and seal (A41402) must be replaced before nozzle is installed back in head

1шт.

A140828R

REMAN-INJECT NOZZLE

450 S/N 3060306 & AFTER

4шт.

A140828C

CORE-NOZZLE, INJECT

Return Number

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - nozzle, injector

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lifting adjusting, injector nozzles

1шт.

17

A43602

NUT

- lock, lift adjusting screw, injector nozzles

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, injector nozzles

1шт.

19

A42424

LOCK NUT

- lock, pressure adjusting screw, injector nozzles

1шт.

20

A43733

SPRING

- pressure adj. (9/16" free length), injector nozzles

1шт.

21

A44369

SEAT

- pressure adjusting spring, injector nozzles

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle, injector

1шт.

23

A43506

PLATE ASSY.

PLATE - nozzle holder, injector

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, injector

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles

1шт.
