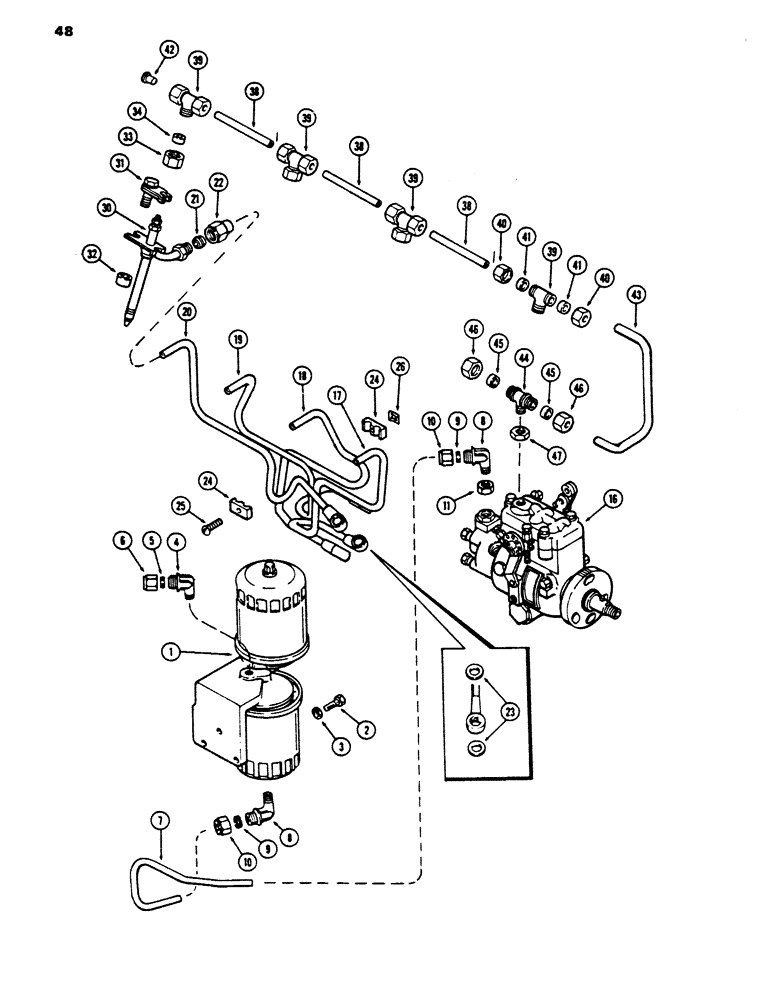

Запчасти Case 450 (048) - FUEL INJECTI0N AND FILTER SYSTEM, 207 DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSY. - fuel (See Figure 50)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- ASSY. fuel inlet, Includes: Ref. 5 and 6

1шт.

5

222-103

SLEEVE,5/16" Tube

1шт.

6

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

7

A51784

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- ASSY., Includes: Ref. 9 and 10

2шт.

9

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

11

A38161

LOCK NUT

- sealing (1/4" PT)(at inj. pump)

1шт.

16

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figure 54)

1шт.

17

A41391

TUBE

ASSY. - injection pump to No. 1 cylinder (Replaces A50980), Includes: Ref. 21 - 23

1шт.

18

A41392

TUBE

ASSY. - injection pump to No. 2 cylinder (Replaces A50981), Includes: Ref. 21 - 23

1шт.

19

A41393

TUBE

- ASSY. injection pump to No. 3 cylinder (Replaces A50982), Includes: Ref. 21 - 23

1шт.

20

A41394

TUBE

ASSY. - injection pump to No. 4 cylinder (Replaces A50983), Includes: Ref. 21 - 23

1шт.

21

A37850

PIPE FITTING

SLEEVE - injection tube

1шт.

22

A37851

NUT

- injection tube

1шт.

23

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screws

1шт.

24

A58709

BRACKET

CLAMP - fuel injection lines

4шт.

25

173-107

SCREW,Sl Rnd Hd, #10 - 24 x 2"

- clamp (#10 x 1" rd. hd.)

2шт.

26

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

2шт.

30

REF

INSTRUCTION

NOZZLE ASSY. - injector (See Figure 50)

4шт.

31

A37837

CLAMP

ASSY. - injector nozzle

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

33

A58961

NUT

- tee to injector nozzle

4шт.

34

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nut-tee

4шт.

38

A38644

TUBE

- fuel leak-off

3шт.

39

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TOO

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

8шт.

41

222-102

SLEEVE,1/4" Tube

8шт.

42

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - tee (rear)

1шт.

43

A142906

TUBE

- fuel leak-off (to pump) (Rpl. A51658)

1шт.

44

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY - fuel leak-off line (at pump), Includes: Ref. 45 and 46

1шт.

45

222-102

SLEEVE,1/4" Tube

2шт.

46

22-112

BRACKET

NUT - (for 1/4" tube)

2шт.

47

A38160

LOCK NUT

- sealing (1/8" P.T.) (at pump)

1шт.
