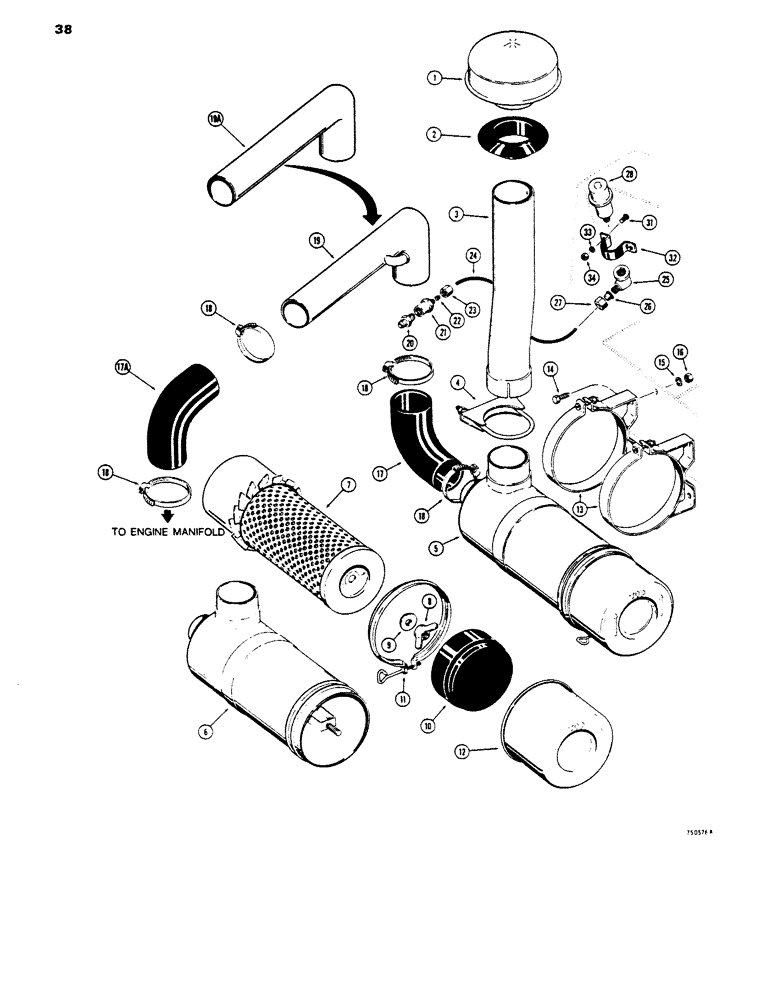

Запчасти Case 450 (038) - DRY TYPE AIR CLEANER (01) - ENGINE

1

A61276

AIR CLEANER

CAP - inlet, air cleaner

1шт.

2

R14780

GROMMET

- air cleaner stack (2 1/16" I.D.)

1шт.

3

D43674

MUFFLER

STACK - air cleaner extension

1шт.

4

A13240

CLAMP,2-5/8" ID

- stack to air cleaner

1шт.

5

F84514

AIR CLEANER

- dry type, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

F84998

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

8

F91761

WING NUT

- wing

1шт.

9

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- wing nut

1шт.

10

F22312

BAFFLE

- air cleaner

1шт.

11

F84999

CLAMP,168.28mm

- air cleaner

1шт.

12

F91760

CUP

- air cleaner

1шт.

13

L11247

BAND

- air cleaner mounting

2шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

17

A14924

INTAKE AIR HOSE,57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

715 - Elbow, 90 deg. 57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

1шт.

17a

A14924

INTAKE AIR HOSE,57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

715 - Elbow, 90 deg. (Replaces A14944) 57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

19

R30384

TUBE - air cleaner to manifold, before tractor sn. 3064021

1шт.

19a

R38720

TUBE - air cleaner to manifold, tractor sn. 3064021 and after

1шт.

20

D36264

FITTING

NIPPLE - filtered

1шт.

D35091

PIPE FITTING

FITTING - straight, female (if used), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY

1шт.

22

D37176

SLEEVE

- compression

1шт.

23

D37362

TUBE NUT

- compression

1шт.

24

D35275

TUBE

- air cleaner to vacuum indicator

1шт.

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

FITTING - 90 deg., Includes: Ref. 25 - 27

1-2шт.

25

NSS

NOT SOLD SEPARAT

BODY

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - compression

1шт.

27

NSS

NOT SOLD SEPARAT

NUT - compression

1шт.

28

D47217

INDICATOR

- vacuum pressure

1шт.

31

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4"

2шт.

32

R33808

CLAMP

- indicator

1шт.

33

80682

LOCK WASHER,1/4"

WASHER - lock, 1/4"

2шт.

34

25-108

NUT,1/2"-13, G5

- hex, 1/4" - 20 NC

2шт.

35

341-1

SEALANT - Pliobond Rubber, 5 oz. tube

1шт.
