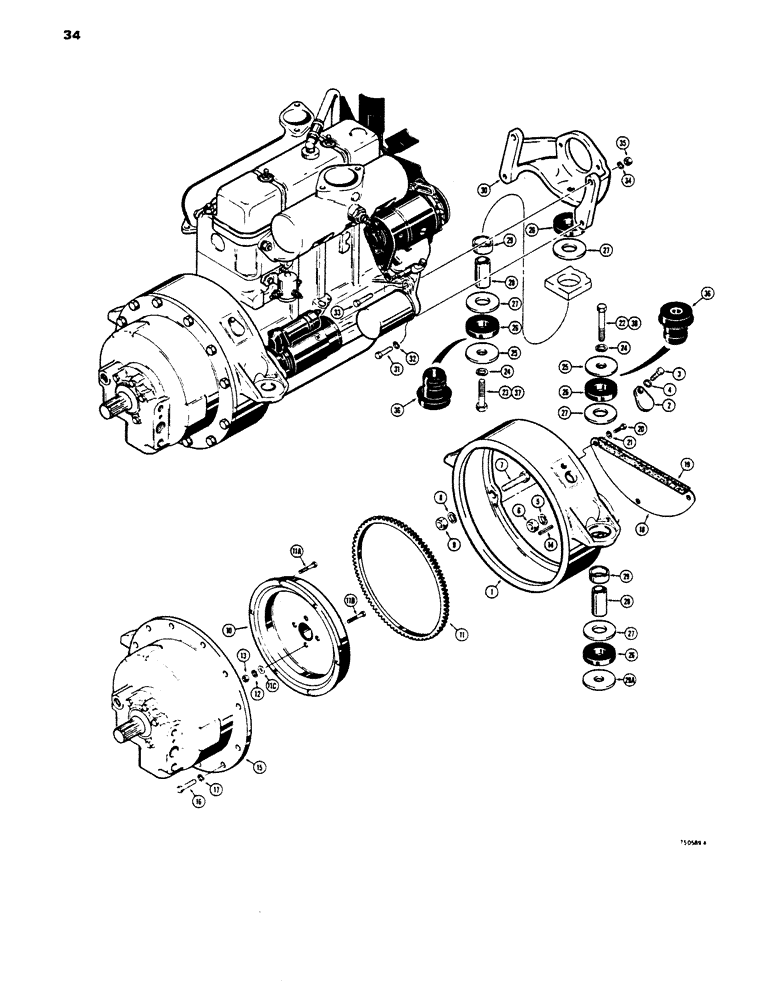

Запчасти Case 450 (034) - ENGINE, FLYWHEEL AND TORQUE CONVERTER MOUNTING (01) - ENGINE

1

A36596

HOUSING

- flywheel

1шт.

2

A29068

COVER

- timing hole

2шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

7

A30135

BOLT

BOLT - ground body

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

A39123

FLYWHEEL

ASSEMBLY - D52422 converters, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

11

G11710

GEAR

RING GEAR - flywheel

1шт.

11a

28-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 8

HHCS - 5/16 " - 24 NF x 1-1/4"

6шт.

11b

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

HHCS - 7/16" - 20 NF x 1-1/8"

4шт.

11c

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special, Includes: Ref. 11C

4шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

4шт.

14

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

15

D52422

CONVERTER

TORQUE CONVERTER - parts list figure 90

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

17

92-6

LOCK WASHER,3/8"

12шт.

18

D36893

COVER

- flywheel housing, Includes: Ref. 19

1шт.

19

D36892

SEAL ASSY.

SEAL - dust

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

22

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-3/4"

2шт.

23

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

1шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

25

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- special, 5/8"

3шт.

26

R31034

WASHER,22.23mm ID x 63.5mm OD x 12.7mm Thk

- special

6шт.

27

R31035

WASHER

- special

6шт.

28

R18586

SPACER

- mount

3шт.

29

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

- rubber mount

3шт.

29a

D35232

SPACER

- torque converter mounting

2шт.

30

D35017

SUPPORT

- engine, front

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

R33936

BOLT

- grounded body, 5/8" - 11 NC x 2-1/2"

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

R40564

LAMP

KIT - engine mount and instructions, Includes: Ref. 36 - 38

1шт.

36

R39761

ANCHOR

CUSHION - rubber, engine mount kit - service option

3шт.

37

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Engine mount kit - service option Hex, 5/8"-11 x 2 1/2", G5

1шт.

38

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4, engine mount kit - service option

2шт.
