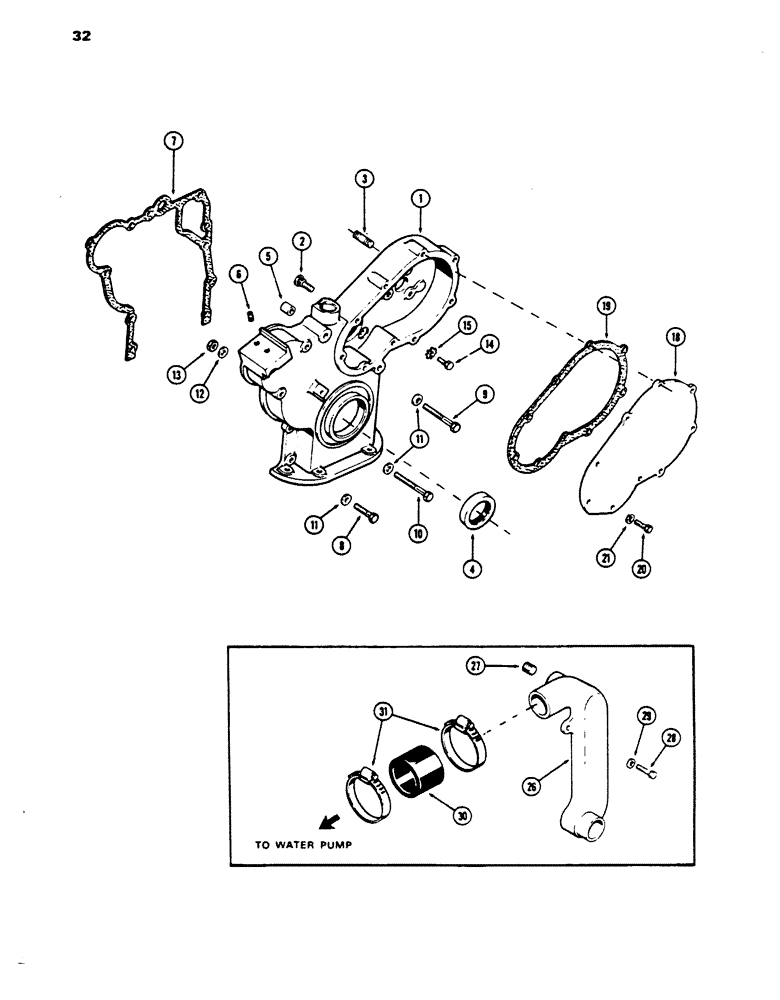

Запчасти Case 450 (032) - TIMING GEAR COVER, 207 DIESEL ENGINE (01) - ENGINE

1

A51981

COVER

ASSY. - timing gears, Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

2шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

STUD - pump mounting (3/8" N.C. x 1-7/16") (replaces G11204)

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover locating (9/16 x 3/8 x 5/8")

2шт.

6

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

PLUG - cover (3/8 x 3/8" N.C. sckt. hd.)

2шт.

7

A51529

GASKET

-, Serial Range: cover-block

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2 " N.C. hex)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 x 3" N.C. hex)

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" N.C. hex)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Cover Hex, 3/8"-16 x 3 1/4", G5

3шт.

11

A50820

WASHER

- 3/8 x 3/4 x 1/8"

9шт.

11

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16"

1шт.

12

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

3шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

15

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

COVER - injection pump gears

1шт.

19

A39925

GASKET

- cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

21

A50820

WASHER

- 3/8 x 3/4 x 1/8"

7шт.

26

A51907

TUBE

- water, used prior to eng s/n 2828095

1шт.

27

221-843

PLUG,Hex Soc, 3/8"-18

- water tube (3/8" P.T.sckt. hd.), used prior to eng s/n 2828095

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- tube (3/8 x 1-1/2" N.C. hex), used prior to eng s/n 2828095

2шт.

29

A50820

WASHER

- 3/8 x 3/4 x 1/8, used prior to eng s/n 2828095

2шт.

30

A7249

HOSE

- tube to water pump (2" I.D. x 2"), used prior to eng s/n 2828095

1шт.

31

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

used prior to eng S/N 2828095 #36, 1.81/2.75 Type F Worm

2шт.
