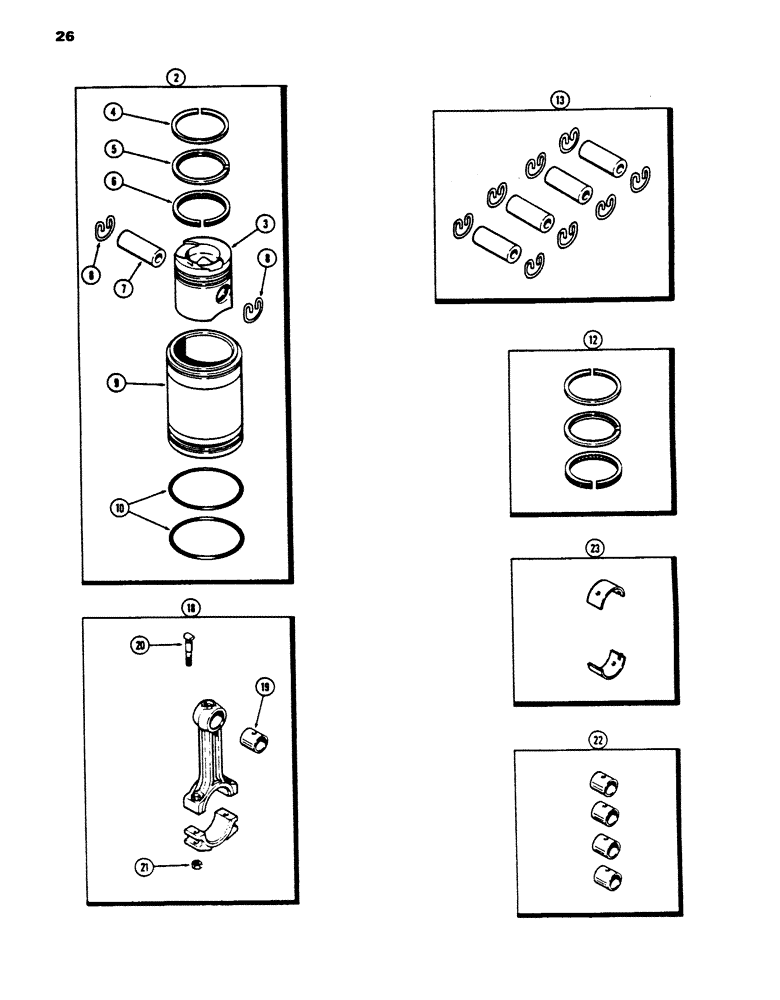

Запчасти Case 450 (026) - PISTONS, 207 DIESEL ENGINE (01) - ENGINE

A46014

KIT

PISTON ASSY. - (Set of 4), Includes: Ref. 2 - 9

1шт.

2

A46013

SLEEVE

PISTON ASSY. - (Set of 1), Includes: Ref. 3 - 9

4шт.

3

A51911

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref.12)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref.12)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order Ref. 12)

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 13)

1шт.

8

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

9

A136474

SLEEVE CYLINDER

SLEEVE - piston (cyl. liner)

1шт.

395949R1

SHIM

.004"-.005"

1шт.

Part of Sleeve, P/N A136474

1шт.

395948R1

SHIM

.007"

1шт.

Part of Sleeve, P/N A136474

1шт.

395947R1

SHIM

.012"

1шт.

Part of Sleeve, P/N A136474

1шт.

395946R1

SHIM

.030" thick

1шт.

Outside edge may need to be trimmed to fit into cylinder bore. This is acceptable. Do not fold the edges over.

1шт.

Part of Sleeve, P/N A136474

1шт.

10

A51916

O-RING,4.115" ID x 4.281" OD

- sleeve

2шт.

A46016

RING

SET - piston re-ring (Set of 4), Includes: Ref. 12

1шт.

12

A46015

RING

SET - piston re-ring (Set of 1)

4шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

18

A51913

RING

ROD ASSY. - connecting, Includes: Ref. 19 - 21

4шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 22), connecting rods

1шт.

20

A51914

BOLT

- conn. rod cap, rods

2шт.

21

A51904

NUT

NUT- conn. rod bolt

2шт.

22

A44083

KIT

BUSHING SET - piston pin (Set of 4), connecting rods

1шт.

23

A50975

BEARING LINER,58.67mm ID x 62.48mm OD x 27.69mm W

LINER KIT - conn. rod brg. (Std.) (Set of 2)

4шт.

23

A50976

BEARING

LINER KIT - conn. rod brg. (-.002") (Set of 2)

4шт.

23

A50977

BEARING,58.42mm ID x 62.48mm OD x 27.69mm W

LINER KIT - conn. rod brg. (-.010") (Set of 2)

4шт.

23

A50978

BEARING,58.17mm ID x 62.48mm OD x 27.69mm W

LINER KIT - conn. rod brg. (-.020") (Set of 2)

4шт.

23

A50979

BEARING

LINER KIT - conn. rod brg. (-.030") (Set of 2)

4шт.
