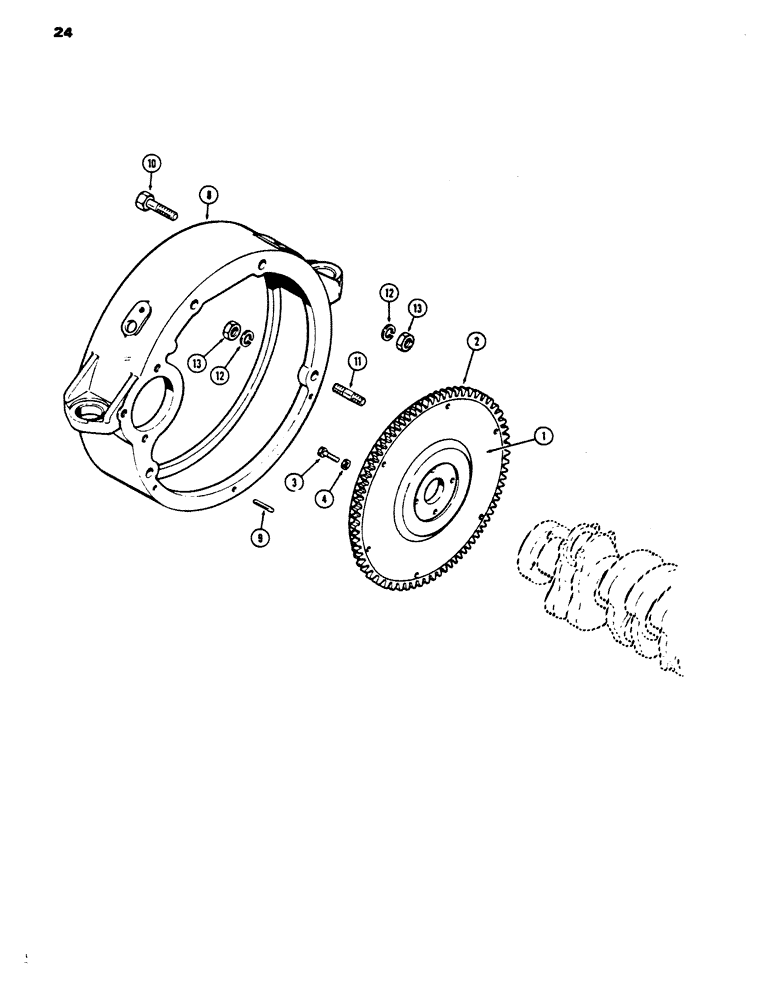

Запчасти Case 450 (024) - FLYWHEEL AND HOUSING, 207 DIESEL ENGINE (01) - ENGINE

1

A39123

FLYWHEEL

ASSY, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring, starter

1шт.

3

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel to crankshaft (7/16 x 1-1/8" N.F. hex)

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt (7/16 x 3/4 x 1/16")

4шт.

8

A150569

HANDWHEEL

HOUSING - flywheel (Replaces A36596)

1шт.

9

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

10

A30135

BOLT

BOLT - housing to engine (5/8 x 2-1/4" N.F.hex)

2шт.

11

A29363

STUD

- housing to engine (5/8" N.F.x 2-1/4")

2шт.

12

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

13

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.
