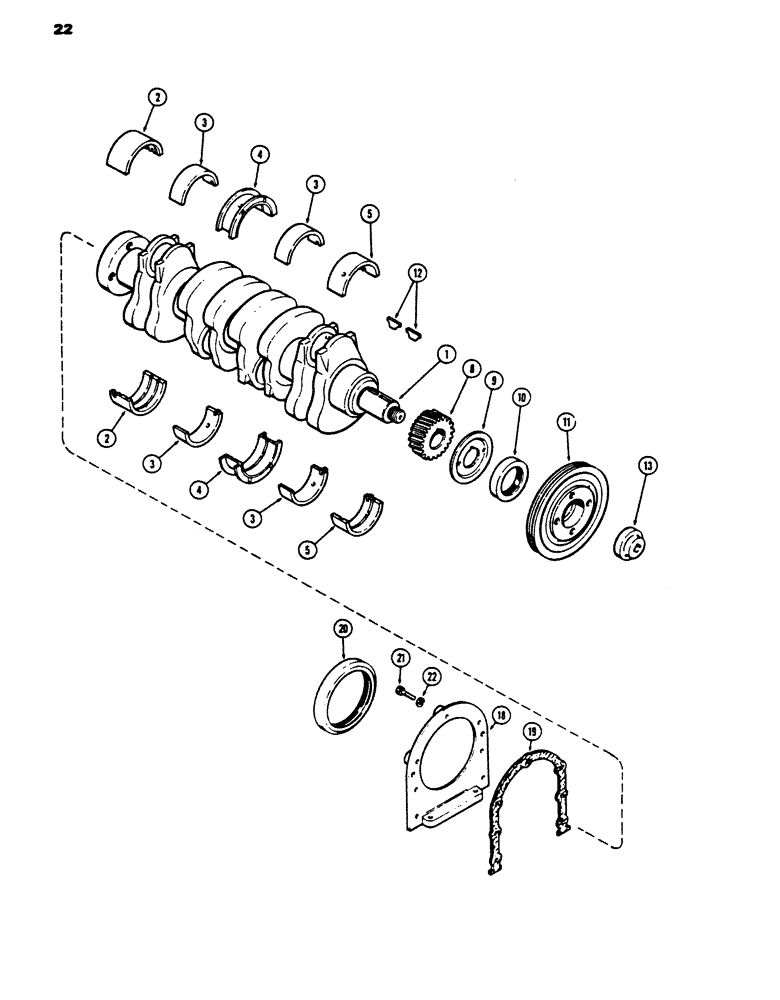

Запчасти Case 450 (022) - CRANKSHAFT, 207 DIESEL ENGINE (01) - ENGINE

1

A51917

CRANKSHAFT

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main brg., rear (Std.) (Set of 2)

1шт.

2

A36496

LINING

LINER KIT - main brg., rear (-.002") (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main brg., rear (-.010") (Set of 2)

1шт.

2

A36498

KIT

LINER KIT - main brg., rear (-.020") (Set of 2)

1шт.

2

A36499

BEARING LINER

LINER KIT - main brg., rear (-.030") (Set of 2)

1шт.

3

A36485

LINING

LINER KIT - main brg., intermediate (Std.) (Set of 2)

2шт.

3

A36486

LINING

LINER KIT - main brg., intermediate (-.002") (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER KIT - main brg., intermediate (-.010") (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER KIT - main brg., intermediate (-.020") (Set of 2)

2шт.

3

A36489

LINING

LINER KIT - main brg., intermediate (-.030") (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main brg., center (Std.) (Set of 2)

1шт.

4

A36491

LINING

LINER KIT - main brg., center (-.002") (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main brg. center (-.010") (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main brg. center (-.020") (Set of 2)

1шт.

4

A36494

LINING

LINER KIT - main brg, center (-.030") (Set of 2)

1шт.

4

A36494

LINING

LINER KIT - main brg., center (-.030") (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER KIT - main brg., front (Std.) (Set of 2)

1шт.

5

A36481

LINING

LINER KIT - main brg., front (-.002") (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER KIT - main brg., front (-.010") (Set of 2)

1шт.

5

A36483

LINING

LINER KIT - main brg., front (-.020") (Set of 2)

1шт.

5

A36484

LINING

LINER KIT - main brg., front (-.030") (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2")

1шт.

11

A50962

PULLEY

- fan drive

1шт.

12

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear (Hi-Pro)

2шт.

13

A35673

NUT

- pulley retaining

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2")

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer (1/4 x 3/4" N.C. hex)

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer (1/4 x 1" N.C. hex)

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.
