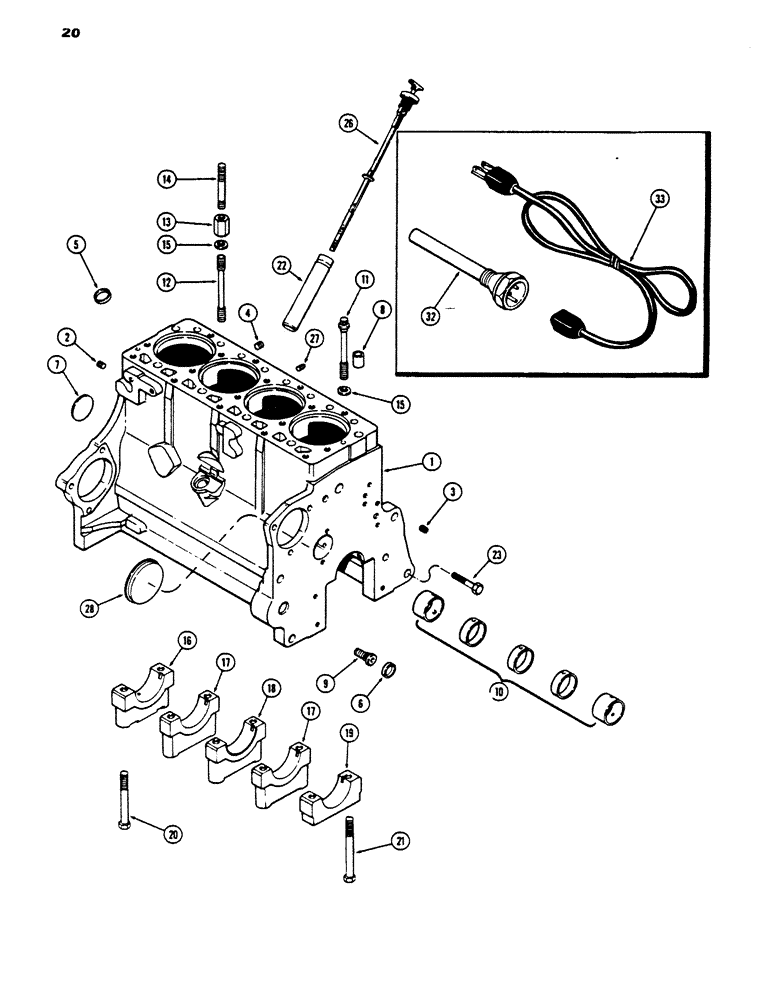

Запчасти Case 450 (020) - CYLINDER BLOCK, 207 DIESEL ENGINE (01) - ENGINE

A46037

SHORT ENGINE

BLOCK ASSY. - short (Casting No. A136813) (Rpl. A46009) (incl. stripped block, piston assy., conn. rods & brgs., crankshaft & brgs., camshaft, oil pump & timing gears), Includes: Ref. 1 - 23

1шт.

1

A44702

BLOCK

ASSY. - stripped (Casting No. A136813) (Rpl. A46010)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

3

G49070

PLUG

- (1/4" P.T., sckt. drilled)

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - (3/8" P.T., sckt. hd.)

1шт.

5

A38534

PLUG

- tach. drive hole (1-1/16" cup type)

1шт.

6

411016

PLUG - adapter hole ( 1" cup type)

1шт.

7

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" exp.)

1шт.

8

G49608

RING

- dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filter

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

11

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

11

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

12

A36902

STUD

- cyl. head (1/2 N.C. x 5-5/8")

2шт.

13

A51114

NUT

- cyl. head studs (1/2" N.C., 12 pt hd.)

2шт.

14

A51271

STUD

- cyl. head cover ( 3/8" N.C. x 3-3/4")

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

16

G38385

CAP - main bearing, rear (Replaces A51057)

1шт.

17

G2128

CAP

- main bearing, intermediate (Replaces A51055)

2шт.

18

G2127

CAP

- main bearing, center (Replaces A51056)

1шт.

19

G2126

CAP

- main bearing, front (Replaces A51054)

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps (1/2 x 4-1/2" N.C. hex)

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front bearing caps (1/2 x 5-1/8" N.C. hex.)

2шт.

22

A37149

TUBE

- oil filler & dipstick

1шт.

23

A38303

BOLT

BOLT - front support (5/8 x 3-3/16" N.C. hex.) (Not used this application)

1шт.

26

A39936

DIPSTICK

- oil level (Turn-Tite type).

1шт.

27

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cyl. block (1/4" P.T., sq. hd.)

1шт.

28

A29268

PLUG

COVER - auxilliary drive opening (3-1/2" cup type plug)

1шт.

32

A44815

HEATER

ASSY. - block heater (Probe = 2.69"), Includes: Ref. 33

1шт.

33

A44814

ELECTRIC CABLE

CORD - heater (12" long), block

1шт.
