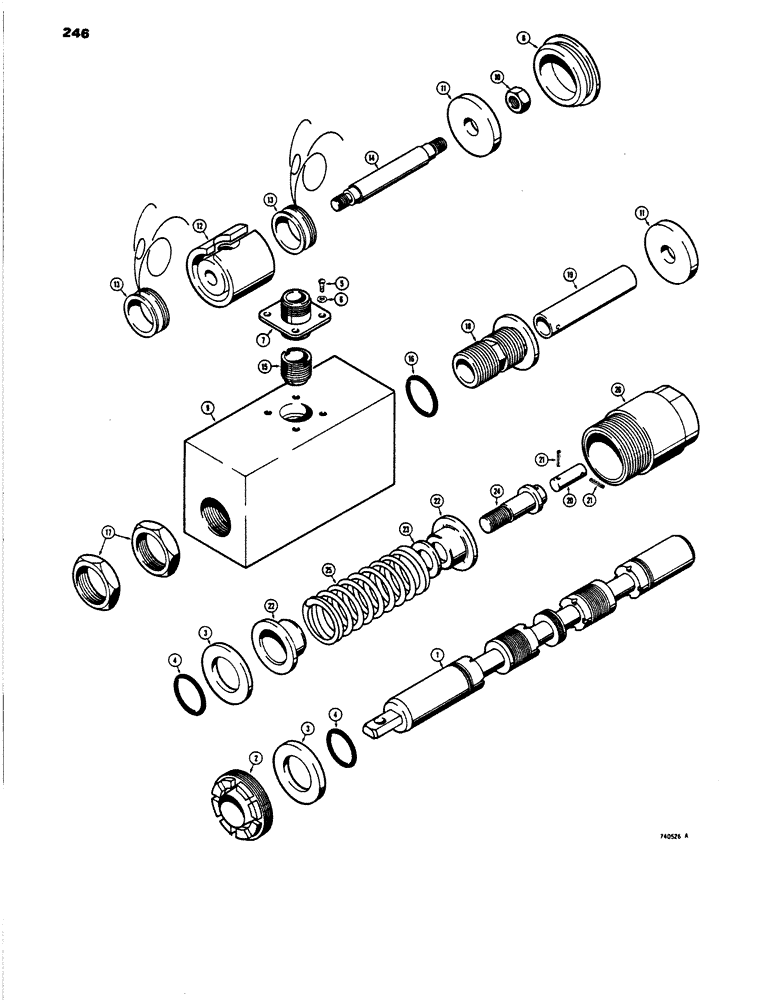

Запчасти Case 450 (246) - THREE POSITION SPOOLS - DOUBLE ACTING, USED ON MODELS WITH RETURN-TO-DIG FEATURE (07) - HYDRAULIC SYSTEM

R29704

SPOOL

ASSEMBLY - three position, Color code - black or letter code - W,.73700" to .73709" (18.720 mm to .18.722 mm), Includes: Ref. 1 - 7

1шт.

R29705

SPOOL

ASSEMBLY - three position, Color code - blue or letter code - X, .73710" to .73719" (18.722 mm to 18.724 mm), Includes: Ref. 1 - 7

1шт.

R29706

SPOOL

ASSEMBLY - three position, Color code - yellow or letter code - Y,.73720" to .73729" (18.725 mm to 18.727 mm), Includes: Ref. 1 - 7

1шт.

R29707

SPOOL

ASSEMBLY - three position, Color code - green or letter code - Z,.73730" to .73740" (18.727 mm to 18.730 mm), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - three position

1шт.

2

L30744

GLAND

AND WIPER - spool

1шт.

3

A14535

RETAINER

- seal

2шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

2шт.

5

173-26

SCREW,Sl Rnd Hd, #4 - 40 x 5/16"

- round head slotted, no. 4-40 NC x 5/16"

4шт.

6

192-153

WASHER

- lock, no.4 Plated

4шт.

7

R33408

CONNECTOR, ELEC

CONNECTOR - special

1шт.

8

L36039

CAP

PLUG - spool, coil and sleeve end

1шт.

9

L36040

CAP

HOUSING - coil and sleeve

1шт.

Housing may be round or square, Internal parts are identical

1шт.

10

25-114

NUT,1/4"-28, G5

- hex, lock, 1/4" - 28 NF

1шт.

11

L36038

CLAMP

WASHER - coil

2шт.

R33407

COIL

KIT - sleeve and coil, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE - coil

1шт.

13

NSS

NOT SOLD SEPARAT

COIL - magnetic

2шт.

14

L36050

BUSHING

SPACER - coil, Rod

1шт.

15

L36042

TUBE

- connector

1шт.

16

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

17

L36045

NUT

- jam

2шт.

18

L36046

CONNECTOR, ELEC

CONNECTOR - spool to coil housing

1шт.

19

L36049

SPACER

- spool and link

1шт.

20

D33858

LINK

-, Serial Range: spool-connector

1шт.

21

138-2012

PIN,1/8" x 1/2", Coiled

Spool 1/8" x 1/2", Coiled

2шт.

22

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

23

A25286

WASHER

- special

1шт.

24

L36048

PLUG

- spool end

1шт.

25

A25285

SPRING

- spool return

1шт.

26

L36047

CAP

HOUSING - spring

1шт.
