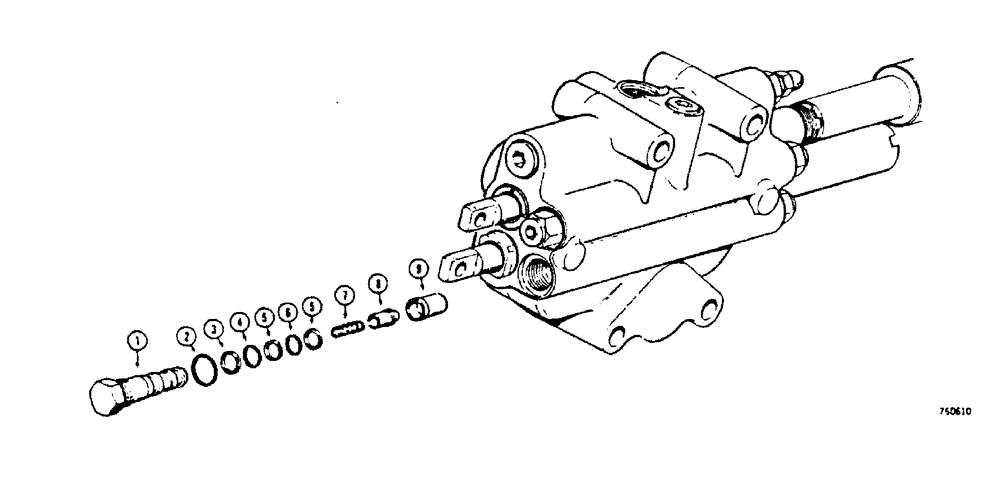

Запчасти Case 450 (238[1]) - CHECK VALVE (07) - HYDRAULIC SYSTEM

1

D37066

CAP

CAP - check valve

1шт.

2

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING - large

1шт.

3

D37071

RING

RING - backup, center O-ring

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O-RING - center

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

RING - backup, small O-ring

2шт.

6

D37149

O-RING,104 mm ID

O-RING - small

1шт.

7

D37067

SPRING

SPRING - check valve

1шт.

8

D37068

VALVE POPPET

POPPET - check valve

1шт.

9

D37069

SLEEVE

SEAT - poppet

1шт.
